Schematic Diagram

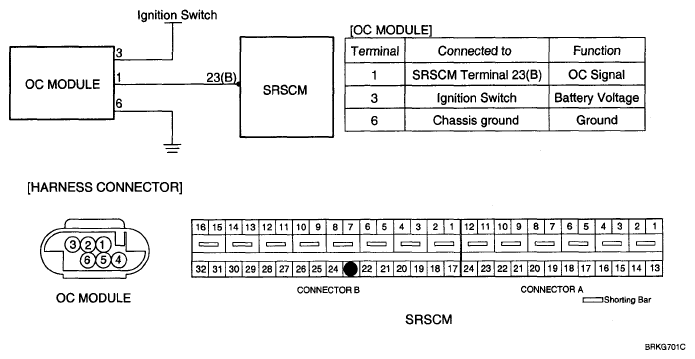

Fig 1: Passenger Occupant Classification Sensor - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
