Component Inspection

Check status
1. IGN "ON" & Engine "OFF" with key intended to register.
2. Monitor the "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS' Parameter on the Scantool.
  Specification : 'LEARNT'

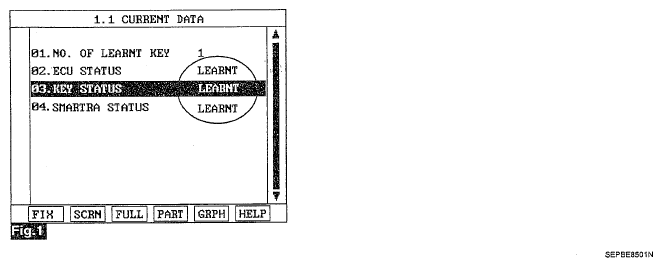

  Fig 1: Monitoring Key Status SMARTRA Status And ECU Status' Parameter
  Courtesy of HYUNDAI MOTOR CO.

  Fig. 1) The current data in normal state.
3. Are "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter within specifications?
  YES
  - Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Go to "Check Transponder" procedure
Check transponder
1. IGN "ON" & Engine "OFF"
2. Neutralize ECM and Register transponder key by scantool.
  NOTE: Pin code is required to Neutralize ECM and to Register transponder key
3. Are Neutralizing and Registering completed normally?
  YES
  - Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known-good transponder and check for proper operation.
  If the problem is corrected, replace transponder and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
