Schematic Diagram

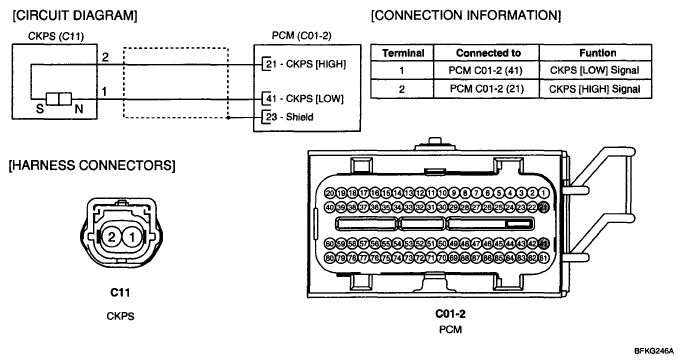

Fig 1: Crankshaft Position Sensor (CKPS) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
