Engine Control/Fuel System (G6DA - GSL 3.8)
>>
Gasoline Engine Control System
>>
Knock Sensor (KS)
>>
Description
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

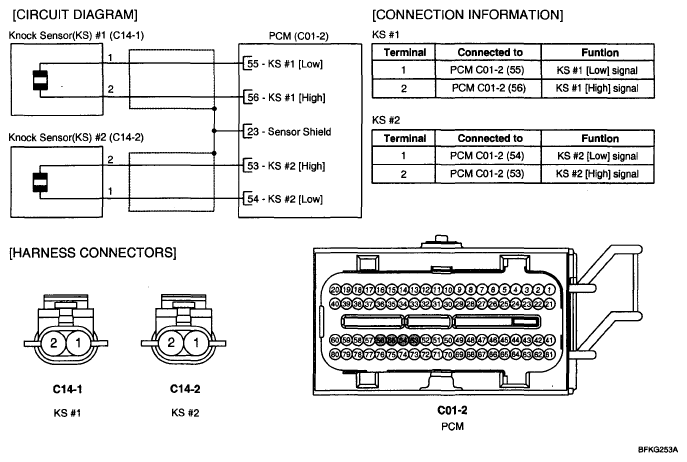

Fig 1: Knock Sensor (KS) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
