FAM (Front Area Module)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the FAM cover from the engine room.
  3. Remove the 2 FAM connectors (A) and battery terminal nut (B).

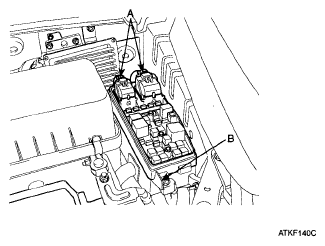

    Fig 1: Identifying FAM Connectors And Nuts
    G05325183Courtesy of HYUNDAI MOTOR CO.
  4. Remove the IPM (B) from the splash shield (C) after loosening the 3 IPM mounting bolts (A) and the IPM mounting clip.

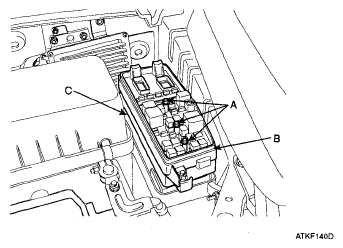

    Fig 2: Identifying Splash Shield And IPM Mounting Bolts
    G05325184Courtesy of HYUNDAI MOTOR CO.
  5. Disconnect the connector from the splash shield.
  6. Installation is the reverse of removal.
