Signal Circuit Inspection

Check for open in harness
1. Ignition "OFF".
2. Measure resistance between terminal "28" of IMS and terminal "3" of power seat recline sensor.
  Specification : Approx. 0 Ω

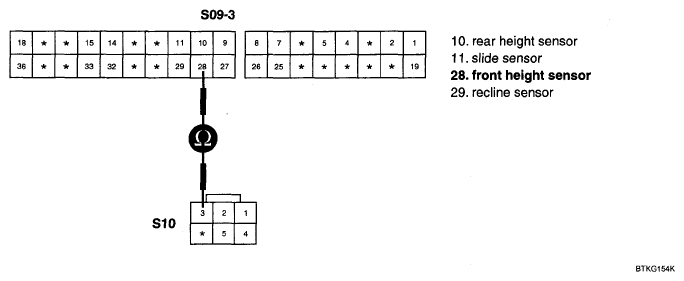

  Fig 1: Measuring Resistance Between Terminal 28 Of IMS And Terminal 3 Of Powerseat Recline Sensor
  Courtesy of HYUNDAI MOTOR CO.
3. Is the measured resistance within specifications?
  YES

  Go to " 2Check for short in harness" procedure.

  NO

  Check for open in signal harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check for short in harness
1. Ignition "OFF".
2. Disconnect front height motor.
3. Measure resistance between terminal "28" of IMS and chassis ground.
  Specification : Approx. ∞ Ω

  Fig 2: Measuring Resistance Between Terminal "28" Of IMS And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured resistance within specifications?
  YES

  Go to "POWER SUPPLY CIRCUIT INSPECTION " procedure.

  NO

  Check for short in signal harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
