IMS (Integrated Memory System): Replacement

  1. Remove the negative (-) battery terminal.
  2. Remove the seats in the car. (Refer to FRONT SEAT ).

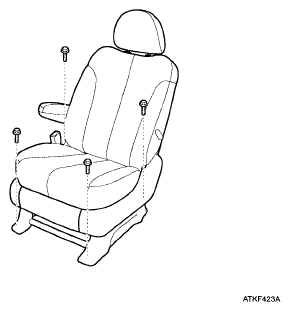

    Fig 1: Identifying Seats Bolts
    G05325162Courtesy of HYUNDAI MOTOR CO.
  3. Remove the IMS module (A) after loosening 4 nuts and 3 connectors in the bottom of seat.

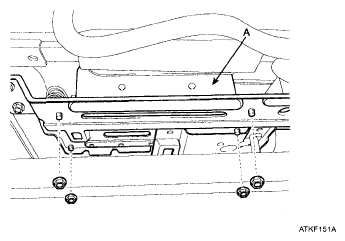

    Fig 2: Identifying IMS Module Nuts And Connectors
    G05325163Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
