Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the center lower side cover(B).

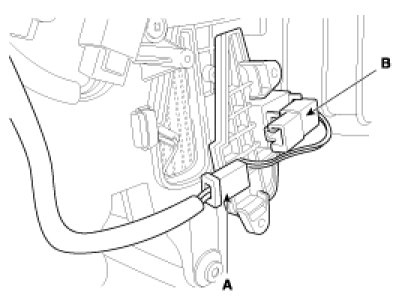

3. Disconnect the evaporator sensor connector (A).
4. Loosen 2 screws and then remove the evaporator sensor cover(B).
5. Remove the evaporator sensor.





CAUTION:
Take care that evaporator core pins are not bent.

6. Installation is the reverse order of removal.
