Repair Procedures





Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the steering column upper and lower shrouds (A) after removing 3 screws.

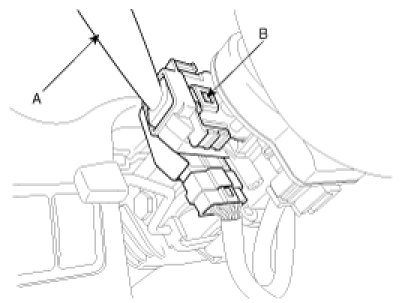

3. Disconnect the light switch(A) connector and pin(B).




4. Remove the wiper switch (A) after disconnecting the connector and pin(B).




5. Installation is the reverse of removal.
