Camshaft Bearing Cap

Camshaft Bearing Cap

Install camshaft bearing caps.

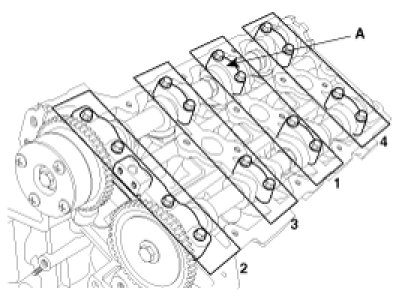

Assemble camshaft bearing caps as the order below.

Tightening torque
5.9 Nm (0.6 kgf.m, 4.3 lb-ft) - 1st step
9.80 - 11.76 Nm (1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft) - 2nd step
