IMS (Integrated Memory System) Module: Removal

  1. Remove the negative (-) battery terminal.
  2. Remove the seats in the car.

    (Refer to FRONT SEAT )

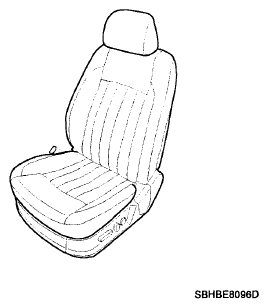

    Fig 1: Identifying Seats
    G06103776Courtesy of HYUNDAI MOTOR CO.
  3. Remove the IMS module (A) after loosening 4 screws and 4 connectors in the bottom of seat.

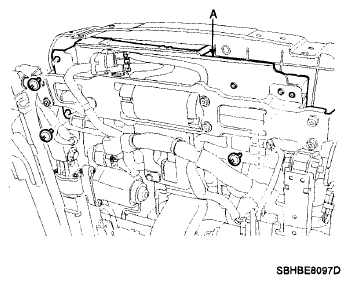

    Fig 2: Identifying IMS Module (1 Of 2)
    G06103777Courtesy of HYUNDAI MOTOR CO.

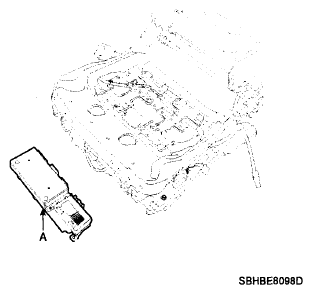

    Fig 3: Identifying IMS Module (2 Of 2)
    G06103778Courtesy of HYUNDAI MOTOR CO.


  1. Disconnect the negative (-) battery terminal.
  2. Remove the seat control switch (A). (Refer to FRONT SEAT )

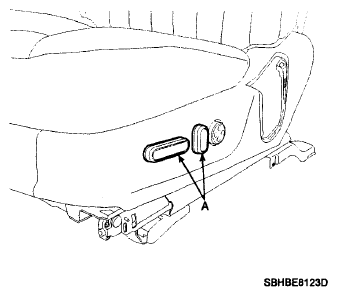

    Fig 1: Identifying Seat Control Switch
    G06103780Courtesy of HYUNDAI MOTOR CO.
  3. After loosening the mounting screws and crimp, then remove the seat cover (A) and recliner cover (B).

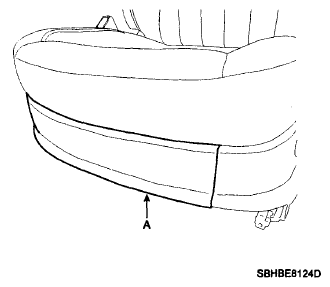

    Fig 2: Identifying Seat Cover
    G06103781Courtesy of HYUNDAI MOTOR CO.

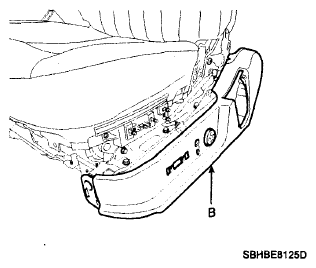

    Fig 3: Identifying Recliner Cover
    G06103782Courtesy of HYUNDAI MOTOR CO.
  4. Loosen the power seat control switch (A) screws (2EA), then remove the connectors (2EA).

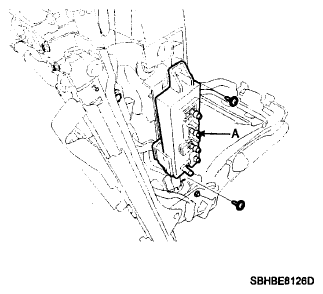

    Fig 4: Identifying Power Seat Control Switch With Screws
    G06103783Courtesy of HYUNDAI MOTOR CO.
