Circuit Diagram

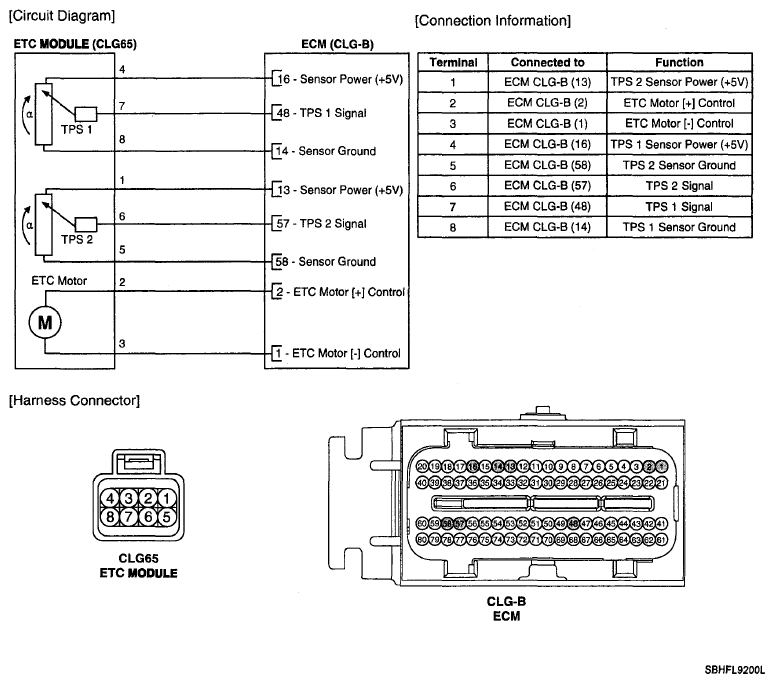

Fig 1: ETC Module And ECM Connector Terminal
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
