Transaxle Control Module (TCM): Installation

  1. Install the TCU (A) to the ECU by tightening the four bolts.
    Fig 1: Identifying TCU Connector With Bolts
    G06106378Courtesy of HYUNDAI MOTOR CO.
  2. Install the ECU and TCU with the bracket (B) by tightening the four bolts and the nut.

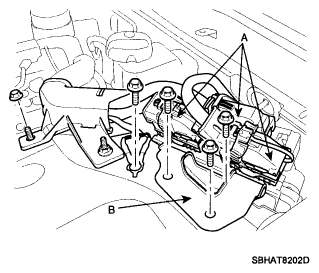

    Fig 2: Identifying ECU And TCU Connectors
    G06106377Courtesy of HYUNDAI MOTOR CO.
  3. Connect the connectors (A) of ECU and TCU.
  4. Install the plastic cover (A) to the driver's side of the engine room.

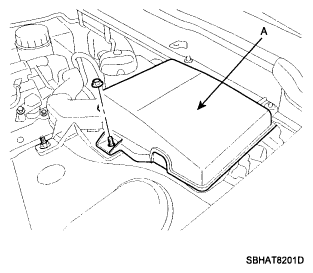

    Fig 3: Identifying Plastic Cover
    G06106376Courtesy of HYUNDAI MOTOR CO.
  5. Connect (-) terminal to the battery.
    NOTE: The battery is placed right side of the temporary tire in the trunk.

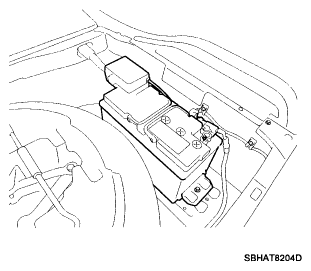

    Fig 4: Identifying Battery
    G06106375Courtesy of HYUNDAI MOTOR CO.
