Manifold Absolute Pressure Sensor (MAPS): Specification

MANIFOLD ABSOLUTE PRESSURE SENSOR (MAPS) VOLTAGE SPECIFICATION

Pressure (kPa) Output Voltage (V)
20.0 0.79
46.66 1.84
101.32 4.0

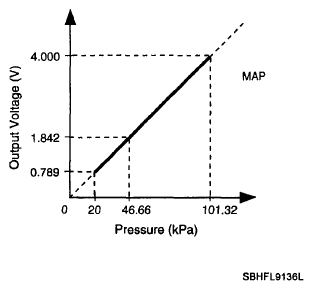

Fig 1: Voltage And Pressure Graph
G06106141Courtesy of HYUNDAI MOTOR CO.
