Front Area Module (FAM): Components

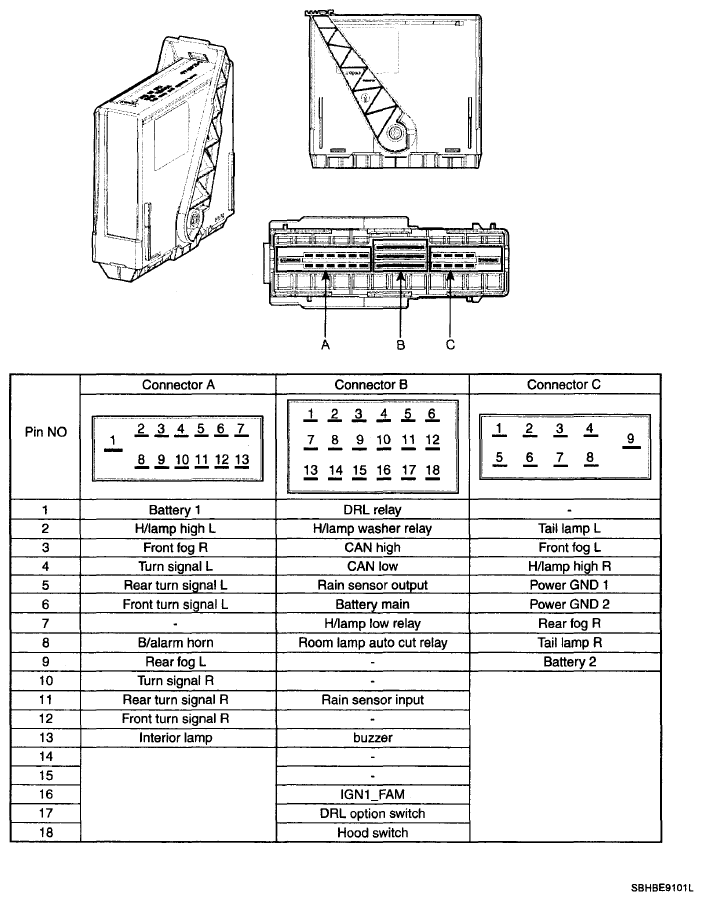

Fig 1: Identifying Front Area Module (FAM) Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
