Smart Key Code Saving

Connect the DLC cable of scan tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on scan tool.

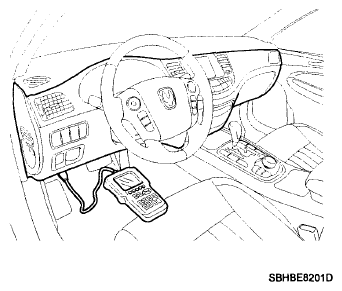

Fig 1: Connecting DLC Cable Of Scan Tool To Data Link Connector (16 Pins)
Courtesy of HYUNDAI MOTOR CO.
Select the vehicle model and then do "Smart key code saving".

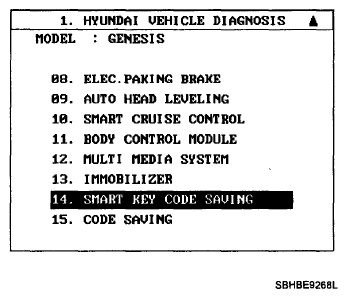

Fig 2: Scan Tool Display - "Smart Key Code Saving"
Courtesy of HYUNDAI MOTOR CO.

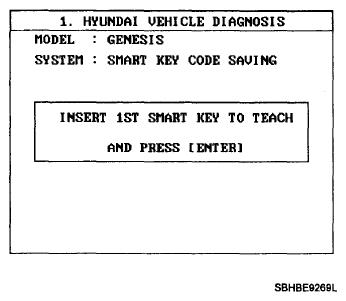

After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

Fig 3: Scan Tool Display - Select "Smart Key Teaching" Menu, Push "Enter" Key
Courtesy of HYUNDAI MOTOR CO.
After inserting the teaching key, push "ENTER" key.
Input the "Pin code" for first key teaching.

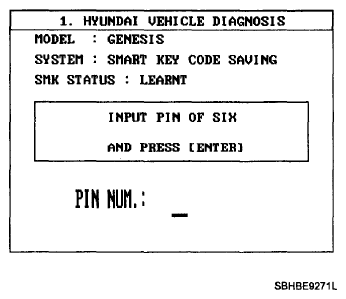

Fig 4: Scan Tool Display - Input "Pin Code" For First Key Teaching (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 5: Scan Tool Display - Input "Pin Code" For First Key Teaching (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Confirm the message "First key teaching completed"

Fig 6: Scan Tool Display - "First Key Teaching Completed"
Courtesy of HYUNDAI MOTOR CO.

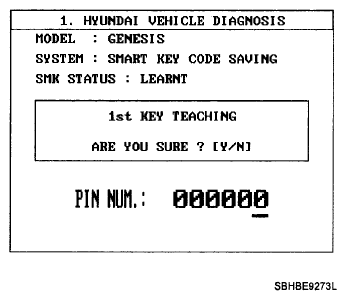

Input the "Pin code" for second key teaching.

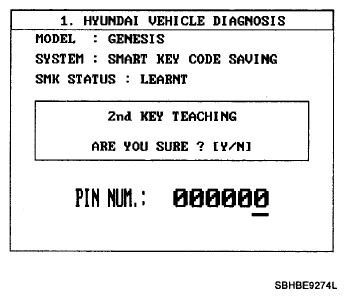

Fig 7: Scan Tool Display - "Pin Code" For Second Key Teaching
Courtesy of HYUNDAI MOTOR CO.
Confirm the message "Second key teaching completed".

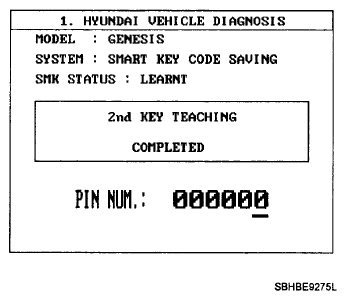

Fig 8: Scan Tool Display - "Second Key Teaching Completed"
Courtesy of HYUNDAI MOTOR CO.
Then the screen will be shown as below when key teaching process is completed.
