Variant coding

  1. Connect scantool to Data Link Connector(DLC).
  2. IG "ON"
  3. Using scantool, Perform Variant coding program. (Fig 1)
  4. IG "OFF" and wait for about 10 seconds, and then IG "ON"
  5. IG "OFF" and wait for about 10 seconds again, and then, IG "ON
  6. Go to "COMPONENT INSPECTION " procedure.

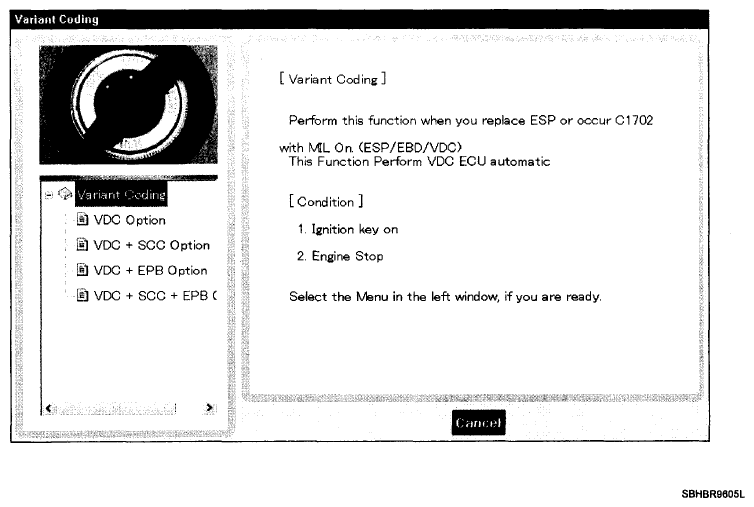

Fig 1: Screen Display - Scantool Diagnostic Item - Variant Coding
G06101240Courtesy of HYUNDAI MOTOR CO.
