Check the Power Source of ABS Control Module

  1. Disconnect the connector from the ESC control module.
  2. Turn the ignition switch ON, measure the voltage between terminal 8 of the ESC control module harness side connector and body ground.

    Specification:  approximately B+

  3. Is voltage within specification?

    YES

    • Check for poor ground.

    NO

    • Check the harness or connector between the fuse (10A) in the engine compartment junction block and the ESC control module. Repair if necessary.

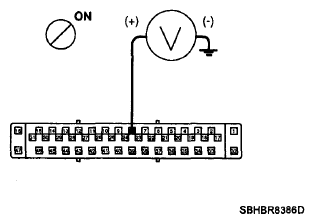

Fig 1: Measuring Voltage Between Terminal 8 Of ESC Control Module Harness Side Connector And Body Ground
G06101193Courtesy of HYUNDAI MOTOR CO.
