Circuit Diagram: Notes

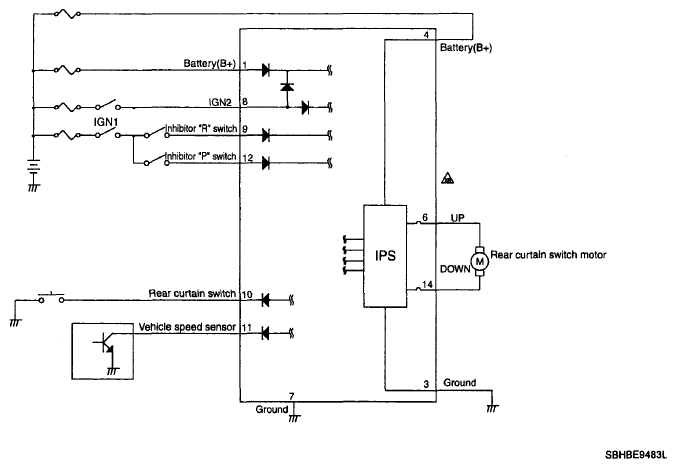

Fig 1: Identifying Rear Curtain System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
