Engine Control System (Fuel System (G8BA - GSL 4.6))
>>
Accelerator Position Sensor (APS)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

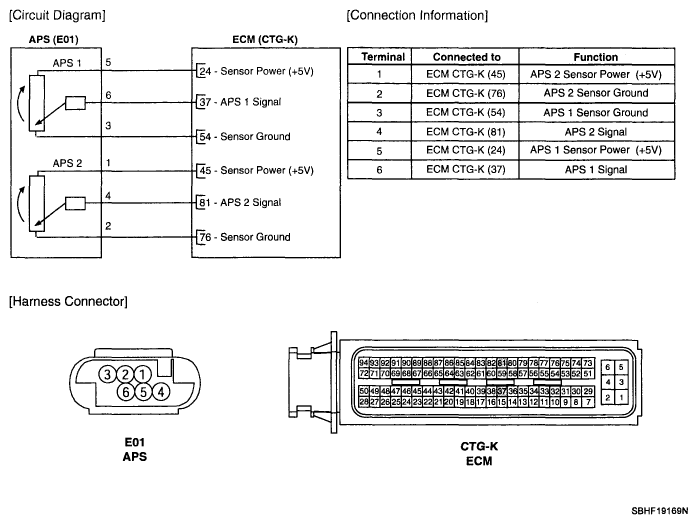

Fig 1: Accelerator Position Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
