Wave Form

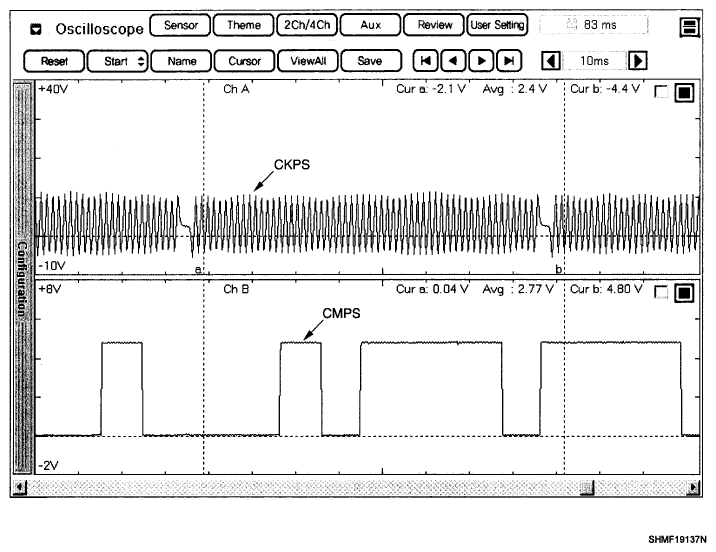

Fig 1: Camshaft Position Sensor Wave Form

Courtesy of HYUNDAI MOTOR CO.

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.
