Circuit Diagram

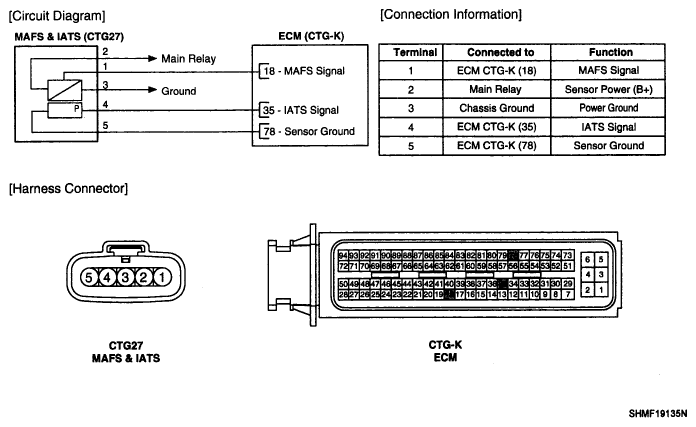

Fig 1: Mass Air Flow Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
