Headlamp Alignment Control Module: Service and Repair

Removal

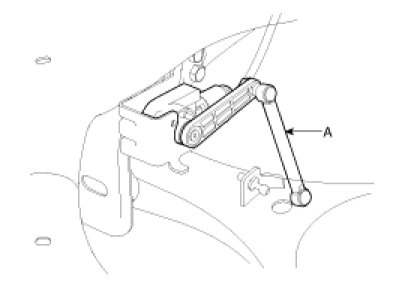

1. Remove the head lamp leveling unit linkage (A) from trailing arm.

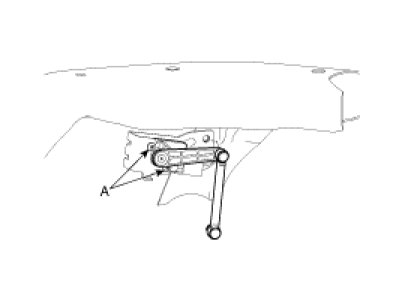

2. Loosen the mounting bolts (3EA) of automatic head lamp leveling unit assembly.

Torque :3-5 Nm (30 - 50 kg.cm, 2.21 - 3.68 lbf.ft)


3. Remove the head lamp leveling unit connector.
4. Remove the head lamp leveling unit assembly after removing the screws (2EA).






Installation

1. Connect the connector and install the head lamp leveling unit.
2. Install the head lamp leveling unit linkage.
