Oil Pump
Oil Pump

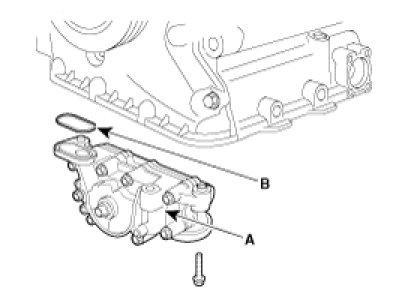

Install the oil pump (A).
Tightening torque 20.6 - 22.6 N.m (2.1 - 2.3 kgf.m, 15.2 - 16.6 lb-ft)
NOTE:
Always use a new O-ring (B).
Oil Pump
Install the oil pump (A).
Tightening torque 20.6 - 22.6 N.m (2.1 - 2.3 kgf.m, 15.2 - 16.6 lb-ft)
NOTE:
Always use a new O-ring (B).
