Smart Key Unit

Inspection

Smart Key Unit

- Refer to the BE group - inspection / self diagnosis with scan tool

Smart Key Switch
- Refer to the BE group - inspection / self diagnosis with scan tool

Antenna
- Refer to the BE group - inspection / self diagnosis with scan tool

Trunk Lid Switch

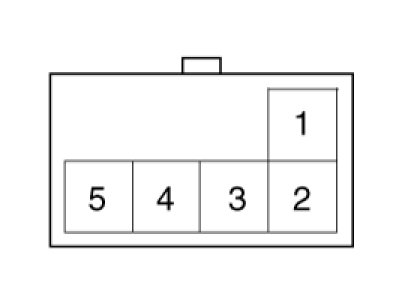

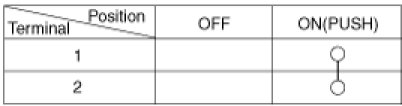

1. Check for continuity between the terminals.




2. If continuity is not specified, inspect the switch






Smart Key

Smart Key Code Saving
1. Connect the DLC cable of scan tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on scan tool.

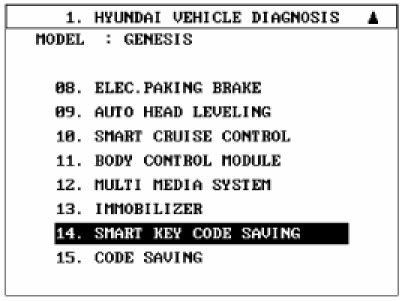

2. Select the vehicle model and then do "Smart key code saving".

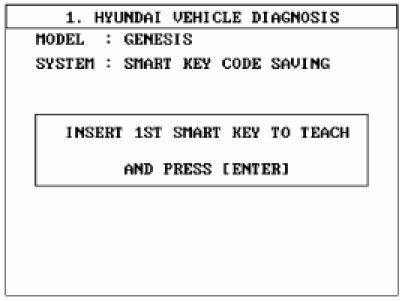

3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

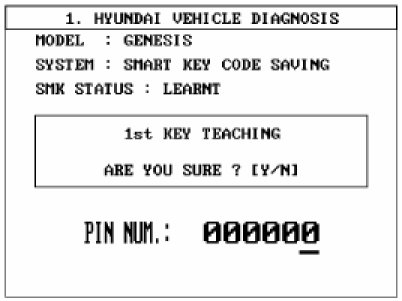

4. After inserting the teaching key, push "ENTER" key.

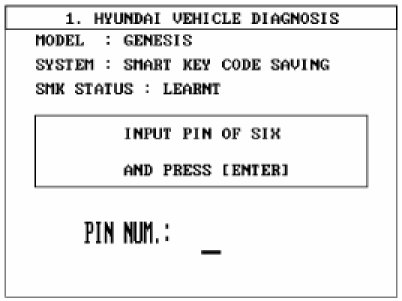

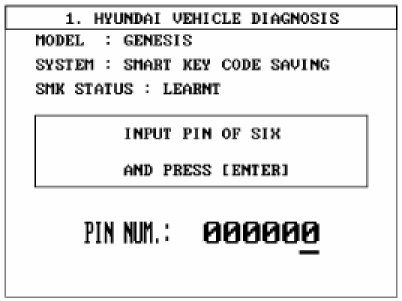

5. Input the "Pin code" for first key teaching.








6. Confirm the message "First key teaching completed".

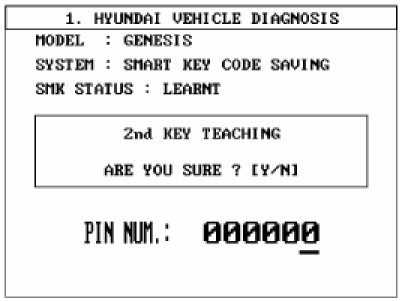

7. Input the "Pin code" for second key teaching.




8. Confirm the message "Second key teaching completed".

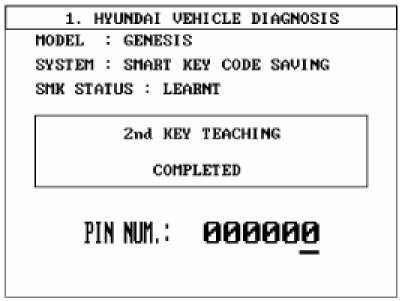

9. Then the screen will be shown as below when key teaching process is completed.
