Driver Door Module (DDM)

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim panel

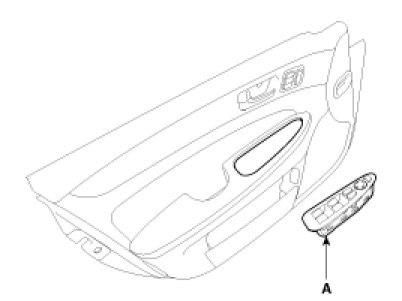

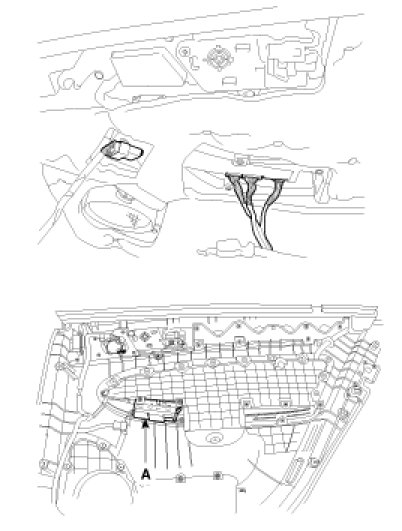

3. Remove the door module (DDM) (A) from the front door trim panel after disconnecting module connector.
Be careful not to damage the door module removing the clip.




4. Remove the door module (A) from the front door trim panel.






Installation

1. Install the door module on the front door trim panel.
2. Install the front door trim panel.
3. Connect the negative (-) battery terminal.
