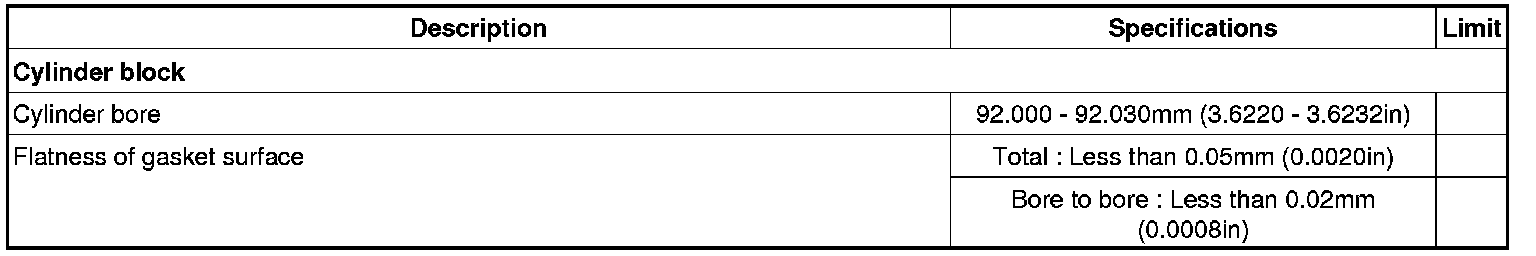

Cylinder Block





Cylinder Block

Cylinder Bore Diameter






Surface Variation
Flatness of cylinder block gasket surface
Standard Less than 0.05 mm(0.0020 in),
Less than 0.02mm(0.0008 in) / 150 x 150
