Main Bearing Cap

Main Bearing Cap

Reinstall the bearings and the lower crankcase assembly, and then torque the bolts.

Tightening torque :

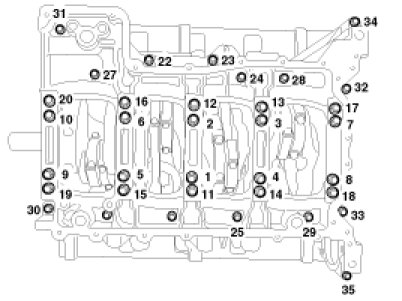

Main bearing cap bolts (1 - 20) 37.3 - 41.2 N.m (3.8 - 4.2 kgf.m, 27.5 - 30.4 lb-ft) + 120°
Flange bolts (21 - 35) 21.6 - 25.5 N.m (2.2 - 2.6 kgf.m, 15.9 - 18.8 lb-ft)

NOTE:
Do not turn the crankshaft.
