Oil Pump

Oil Pump

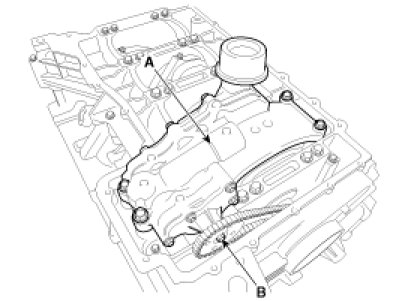

Install the oil pump assembly (A) and then oil pump sprocket (B).

Tightening torque

Oil pump assembly bolts 19.6 - 23.5 Nm ( 2.0 - 2.4 kgf.m, 14.5 - 17.4 lb-ft)
Oil pump sprocket bolts 21.6 - 25.5 Nm ( 2.2 - 2.6 kgf.m, 15.9 - 18.8 lb-ft)
