IMS Control Switch

Removal

1. Disconnect the negative (-) battery terminal.

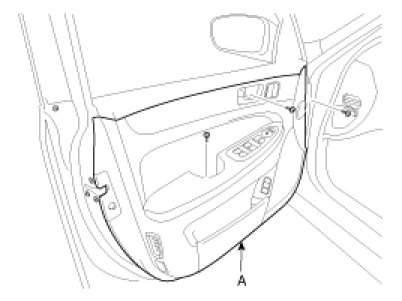

2. Remove the front door trim panel (A).

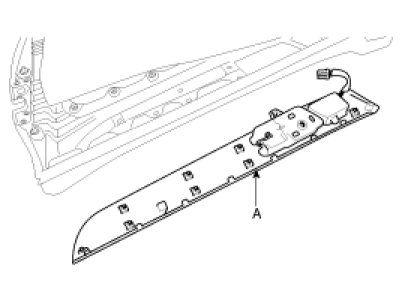

3. Remove the door trim garnish (A) after removing the screws inside the door trim.

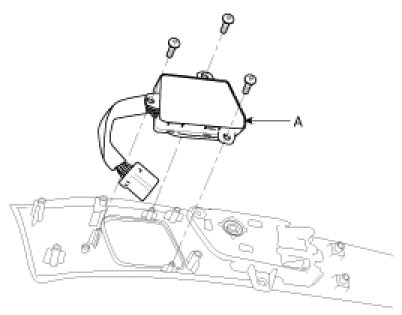

4. After removing the mounting screws(3EA) and switch connector, then remove the IMS control switch.






Installation

1. Connect the connectors and reassemble the IMS control switch.
2. Install the door trim garnish and door trim.
3. Connect the negative (-) battery terminal.
