Communication With Scan-Tool Is Not Possible (Communication With Any System Is Not Possible)

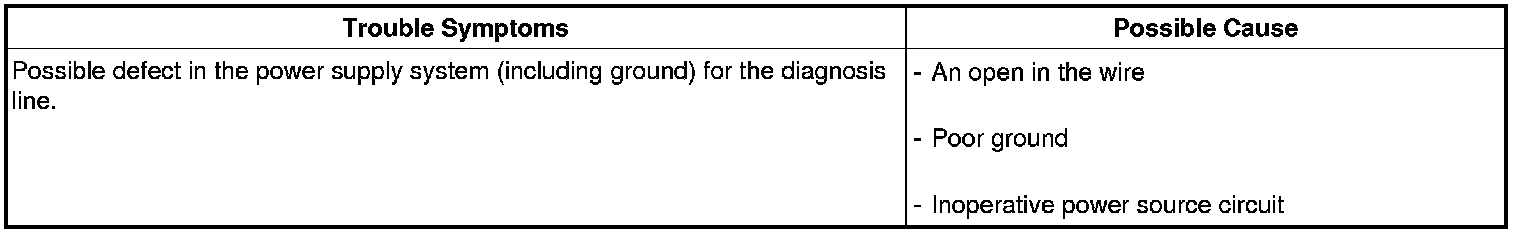

Detecting Condition






Inspection Procedures
Check the Power Supply Circuit for the Diagnosis

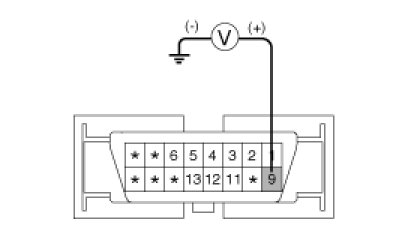

1. Measure the voltage between terminal 9 of the data link connector and body ground.

Specification : approximately B+


2. Is voltage within specification?










Check the Ground Circuit for the Diagnosis

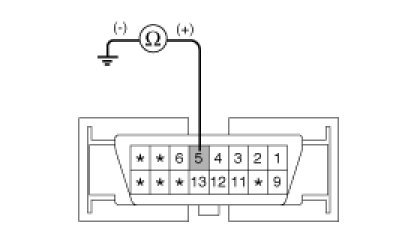

1. Check for continuity between terminal 5 of the data link connector and body ground.
2. Is there continuity?
