Transmission Position Sensor/Switch: Service and Repair

Replacement

1. Pull up the parking brake.
2. Position the shift lever in 'N' range.
3. Remove the air cleaner assembly.
4. Remove the battery.
5. Remove the battery tray.
6. Remove the inhibiter switch connector.

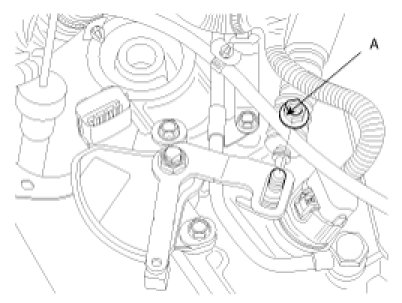

7. Remove the shift cable mounting nut(A).




8. Remove the inhibiter switch loosening the mounting bolts.

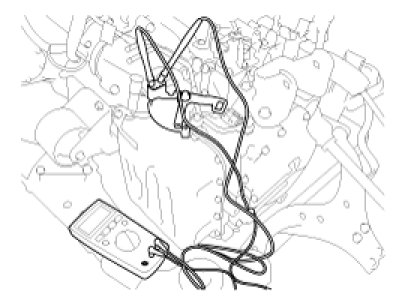

9. Refering to 'INSPECTION', check for continuity. If there is an error, replace the inhibiter switch.




10. After tightening the shift cable mounting nut, connect the inhibiter switch.
11. Install the battery, battery tray and the air cleaner assembly.
