Engine Control Module





ECM Terminal And Input/Output signal

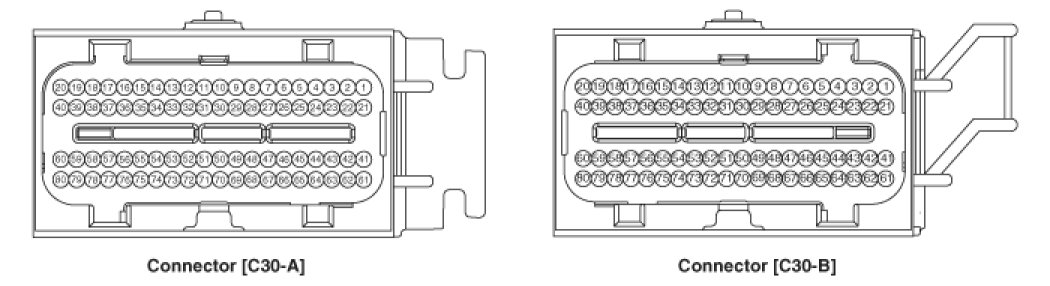

ECM Harness Connector

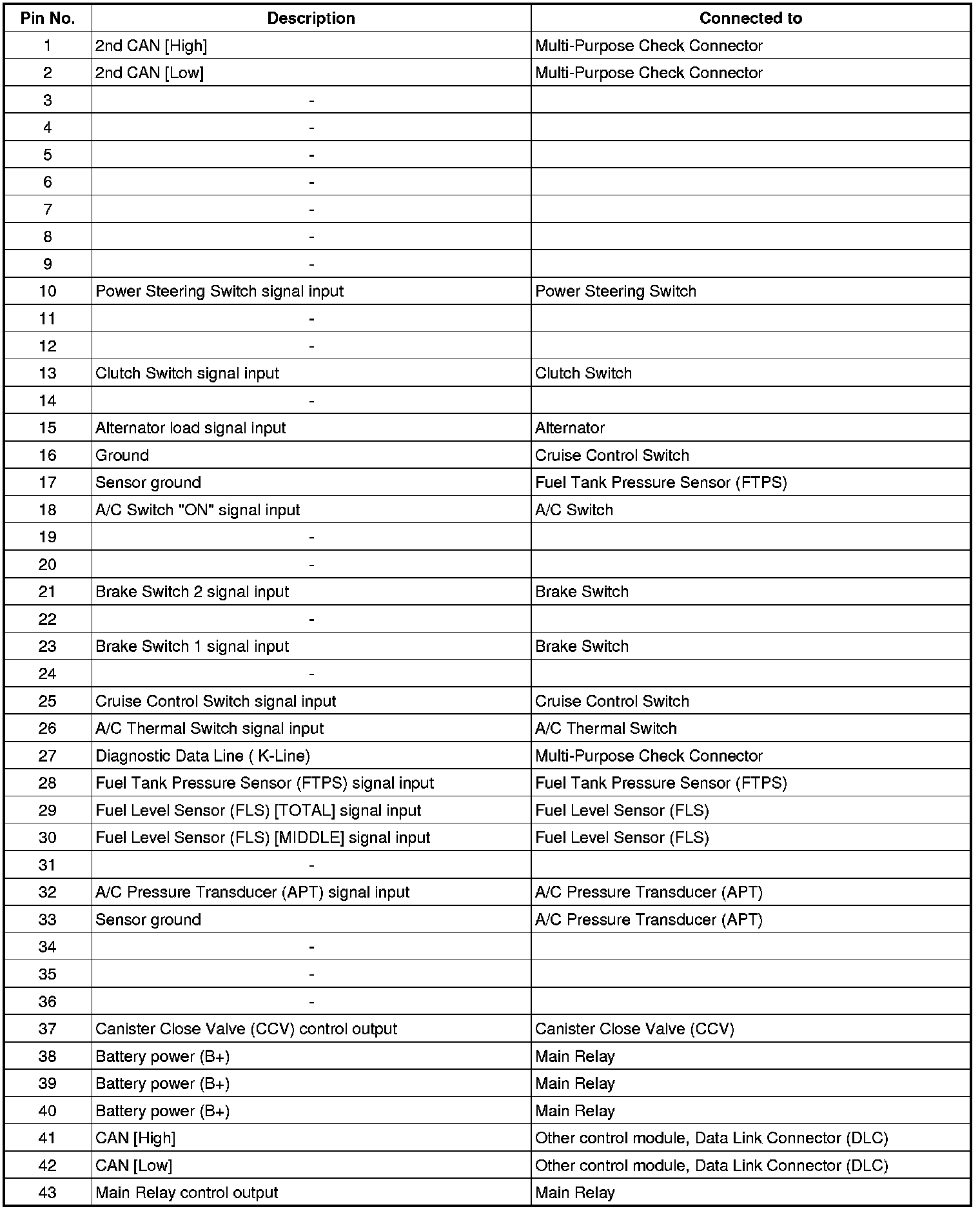

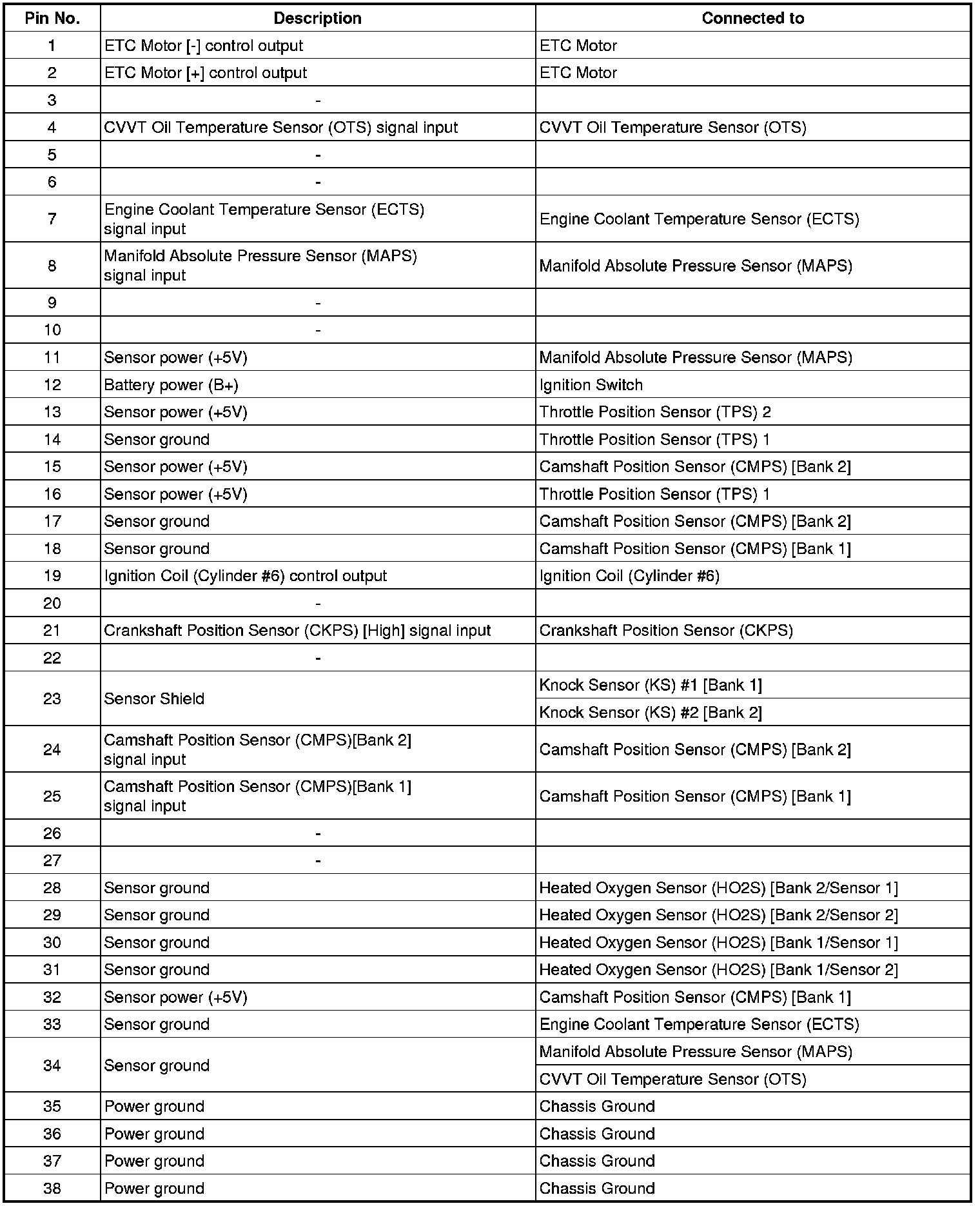

ECM Terminal Function
Connector [C30-A]









Connector [C30-B]

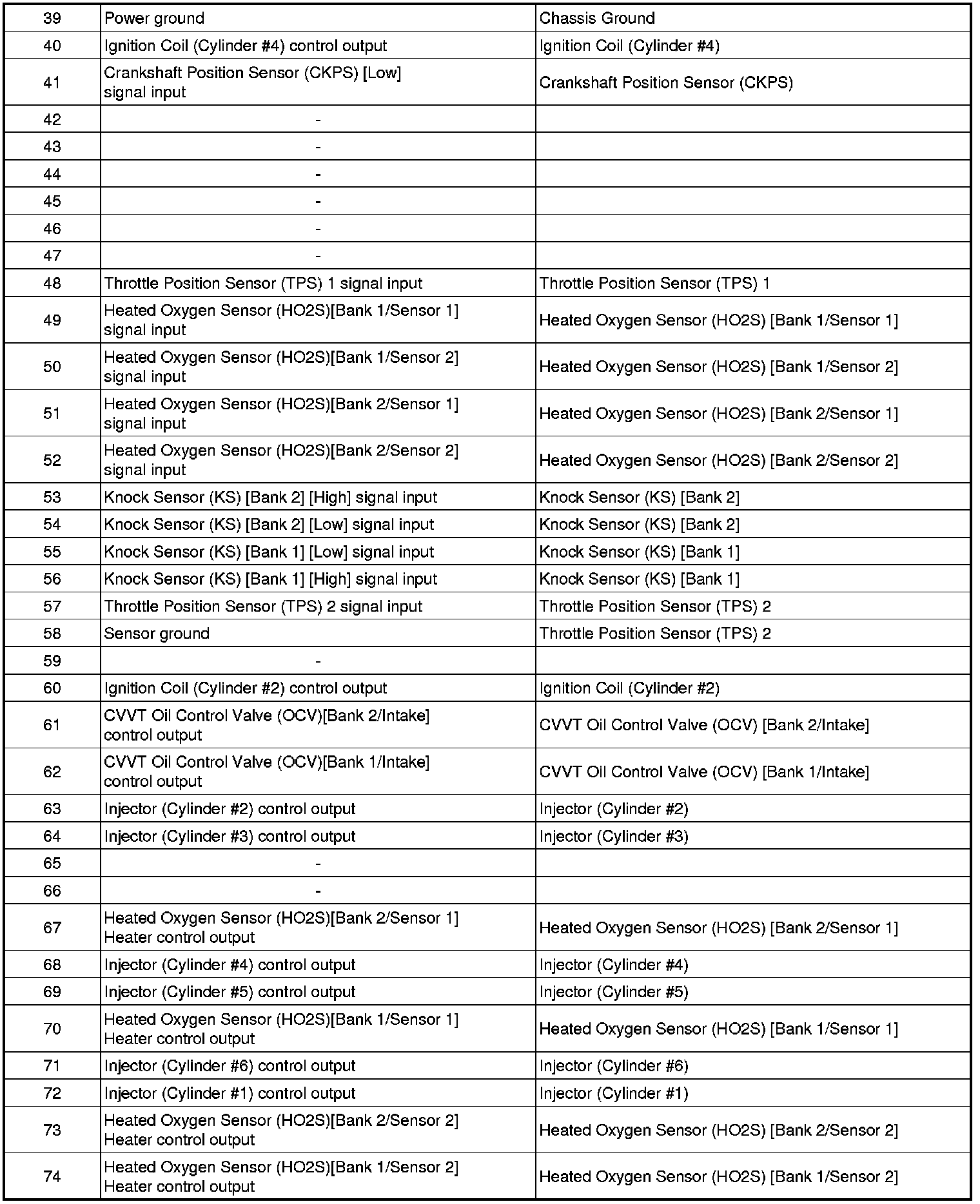

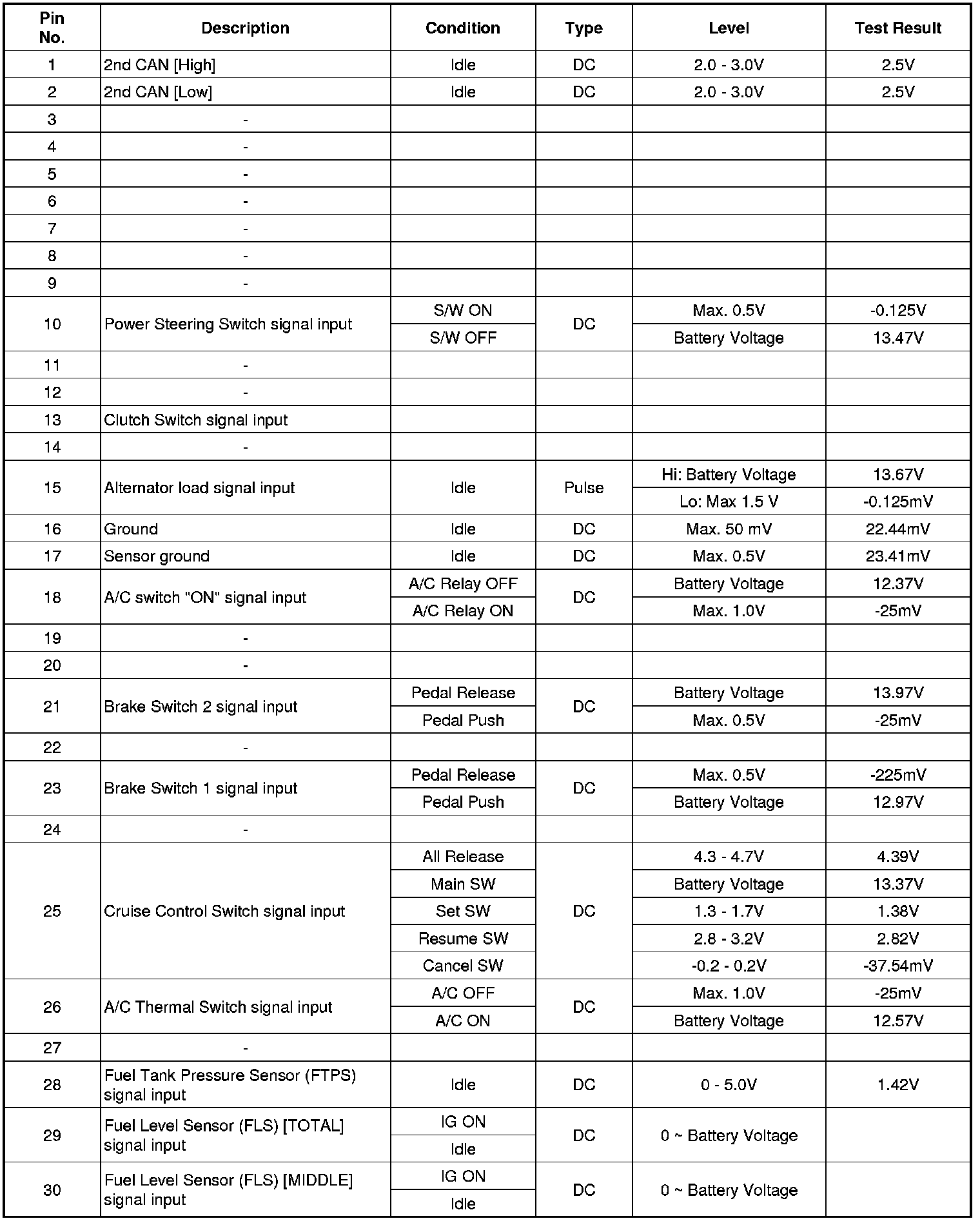

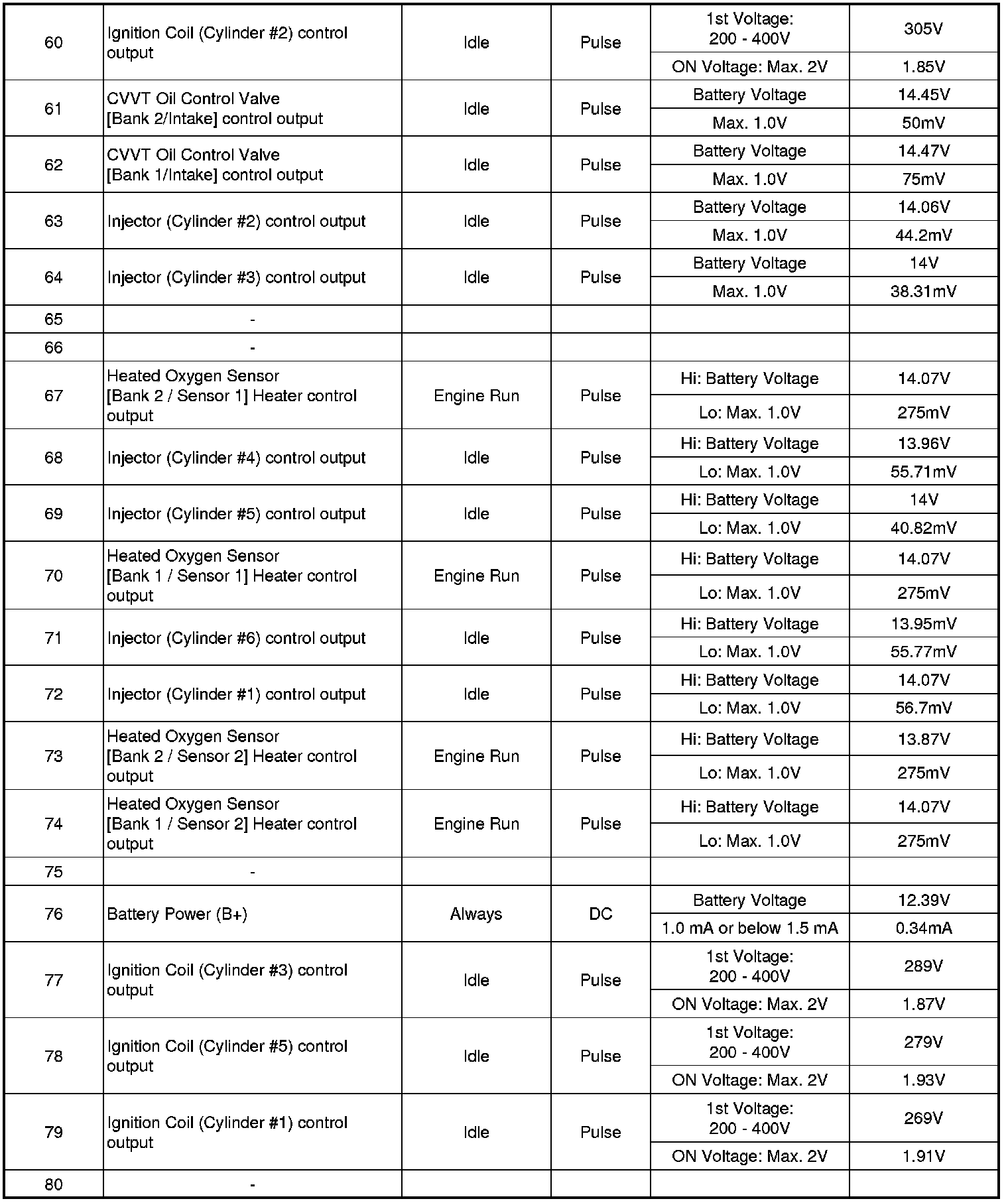

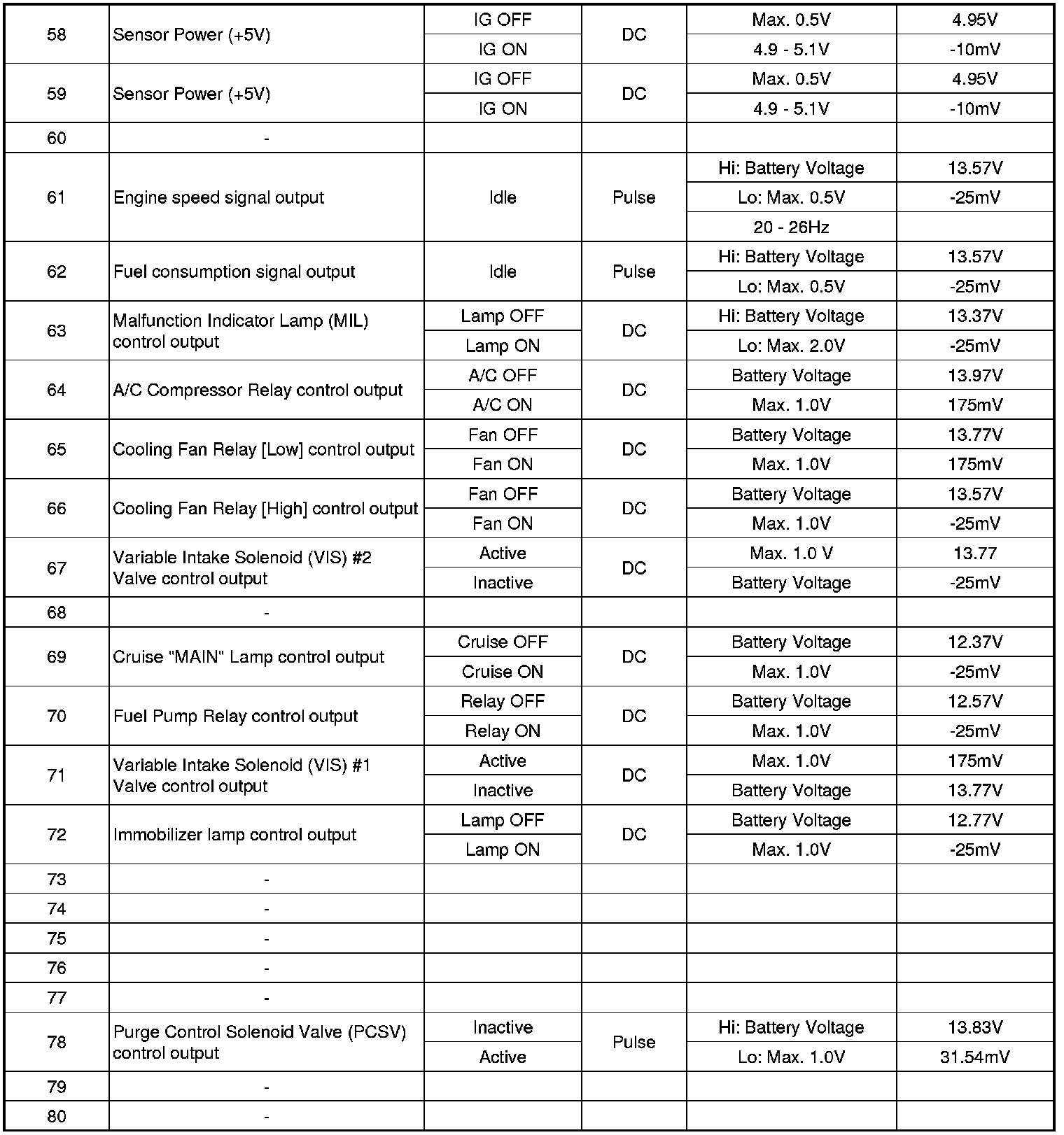

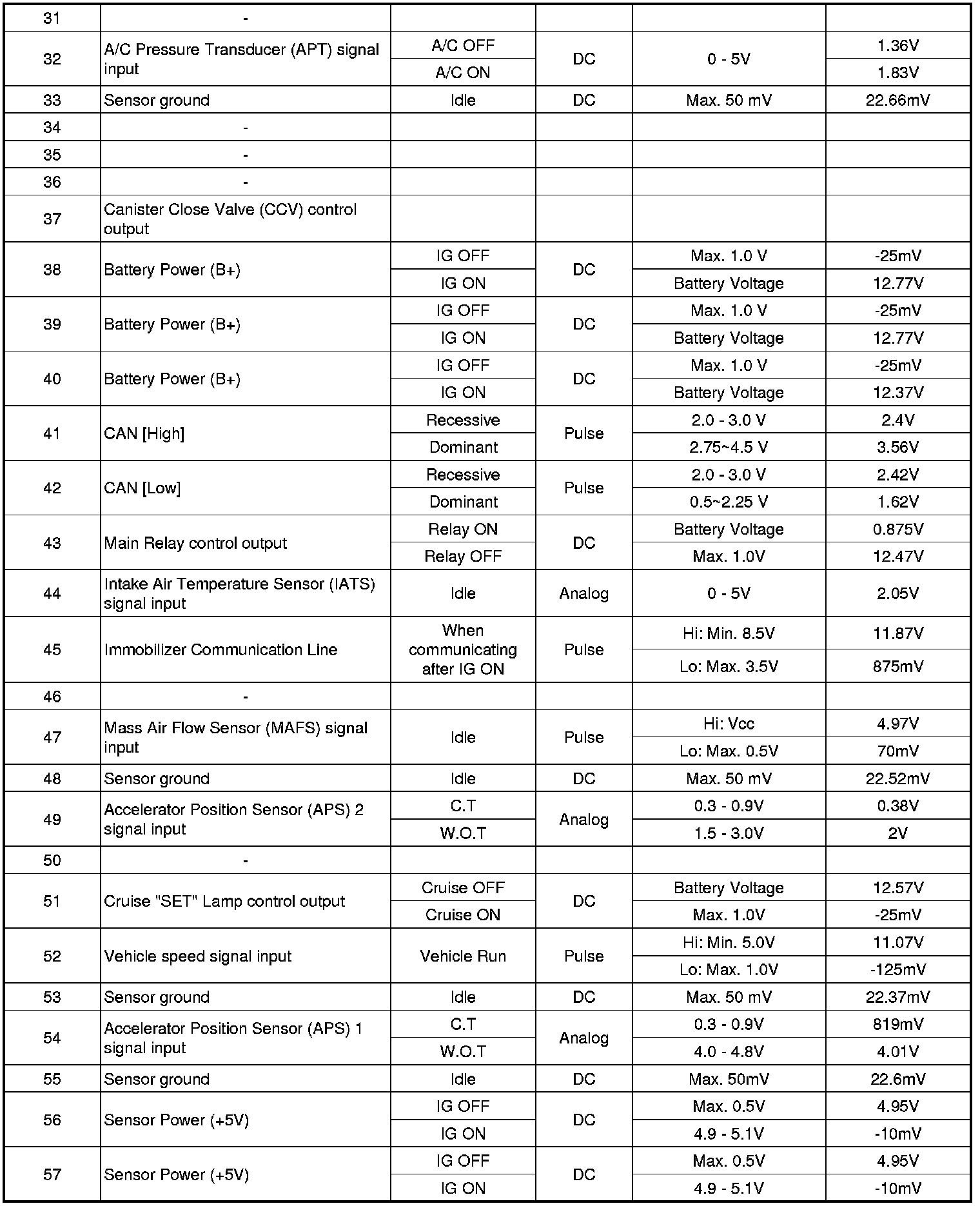

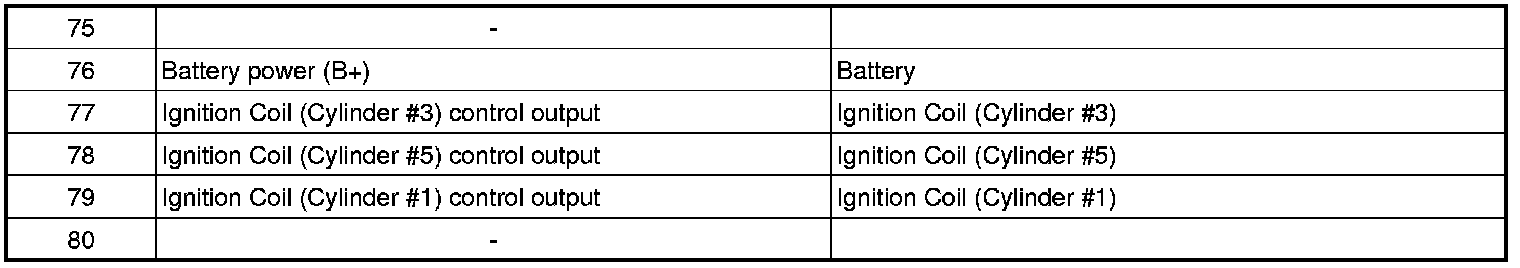

ECM Terminal Input/Output Signal

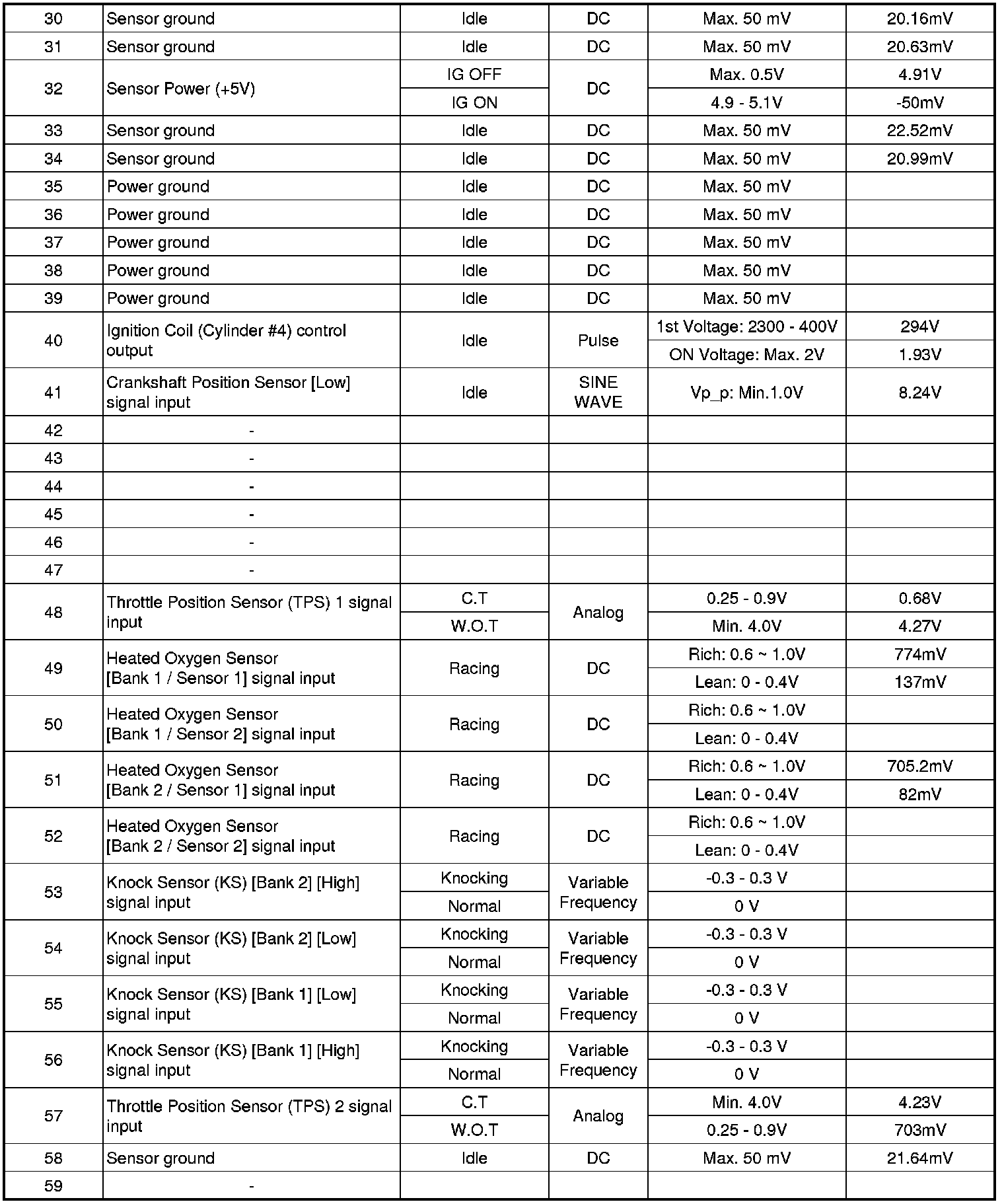

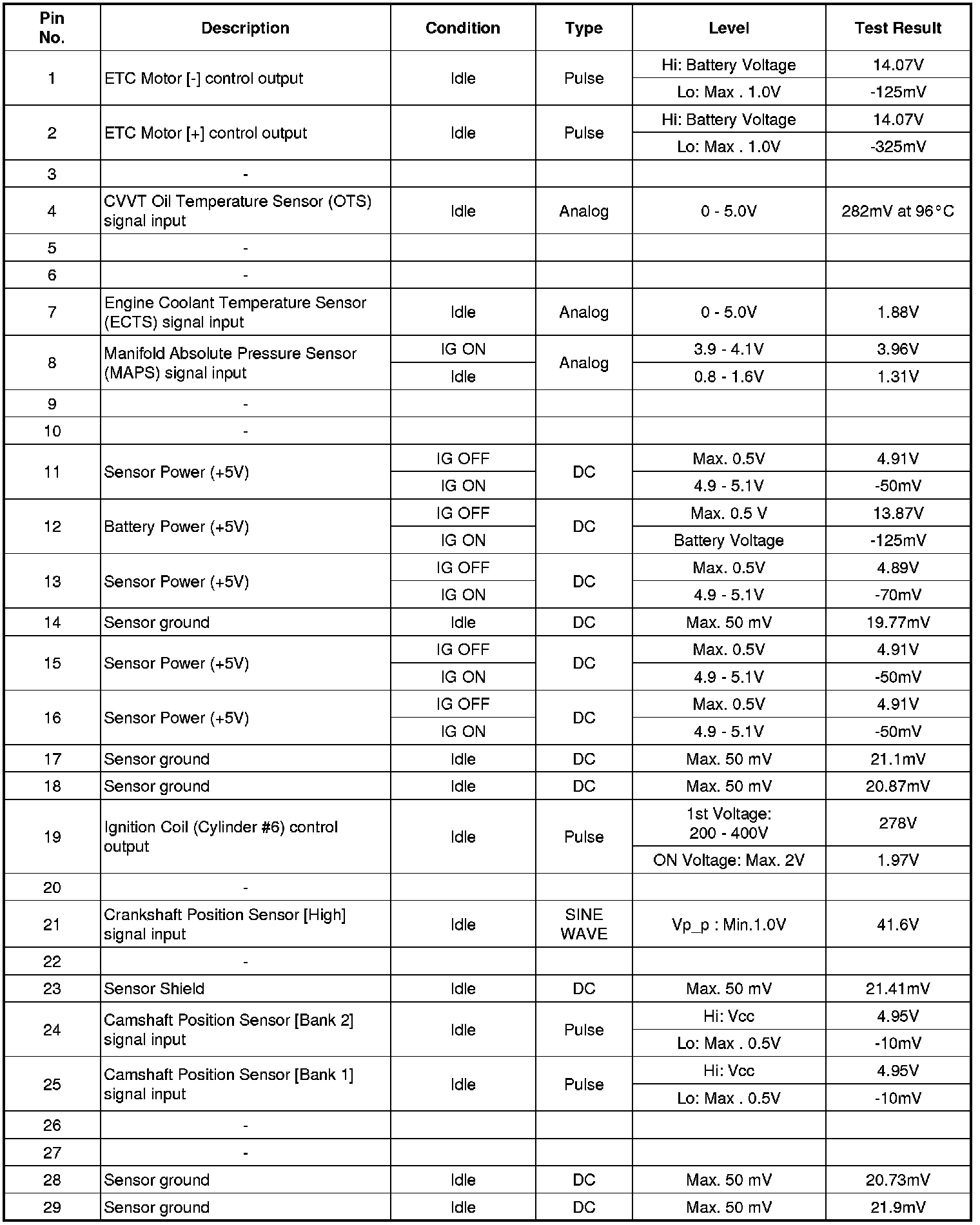

Connector [C30-A]

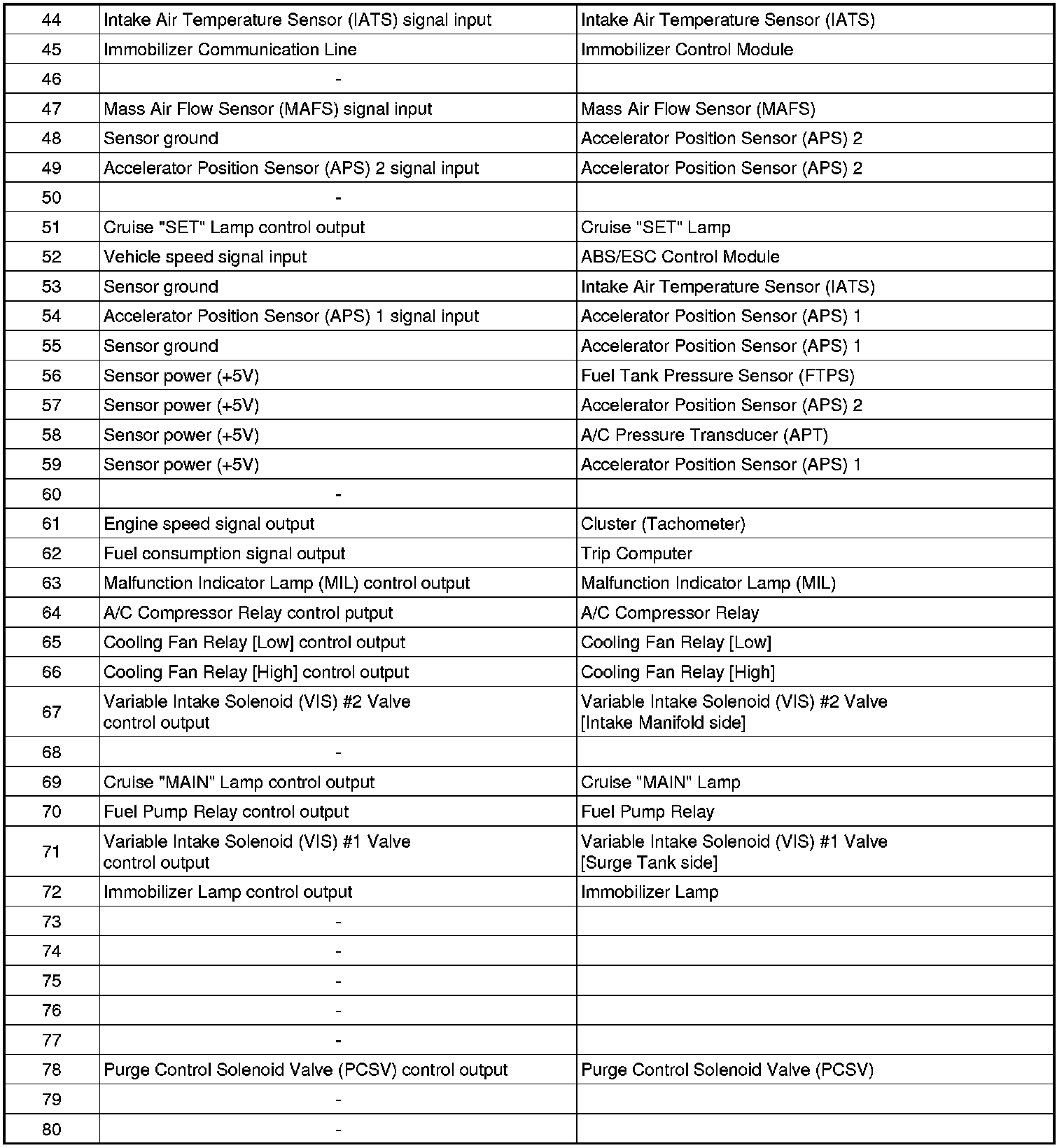

Connector [C30-B]
