General Specifications

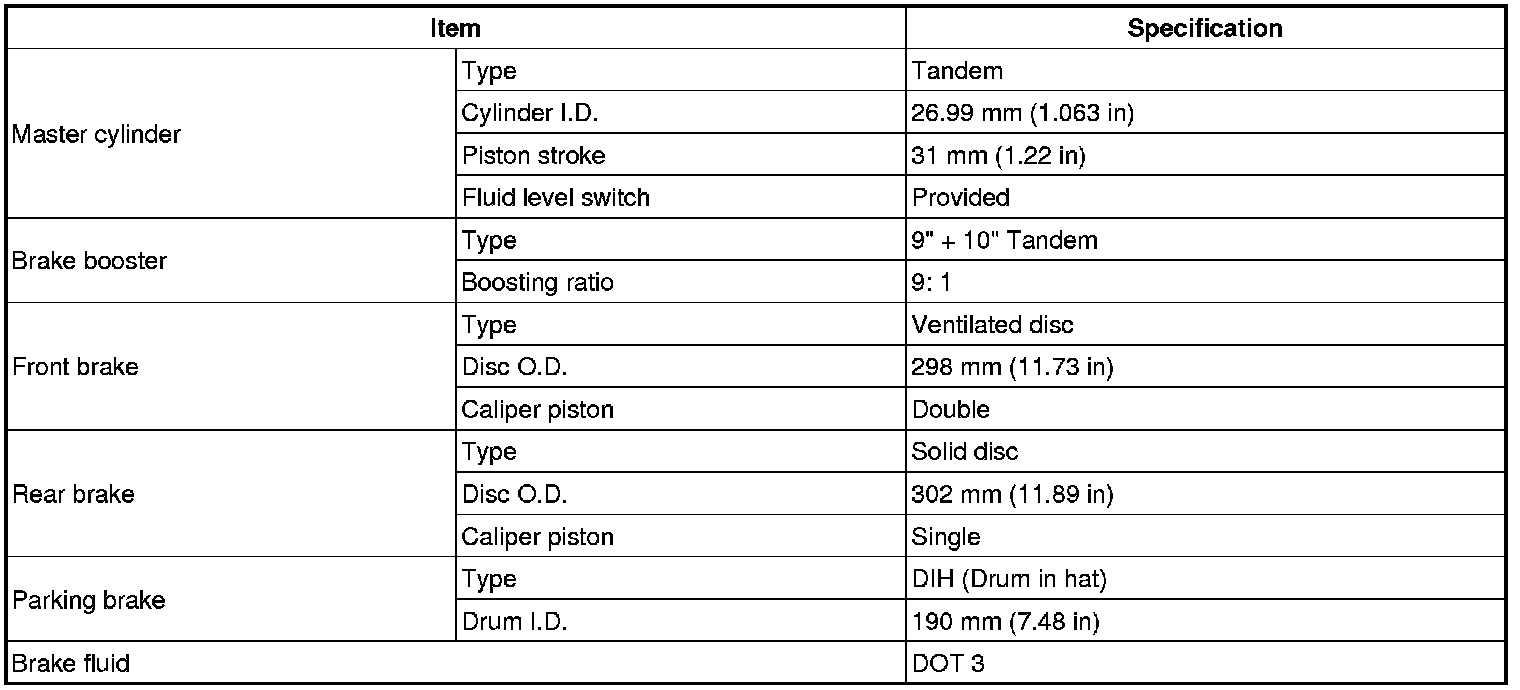

Specifications





NOTE:
O.D. : Outer Diameter
I.D : Inner Diameter

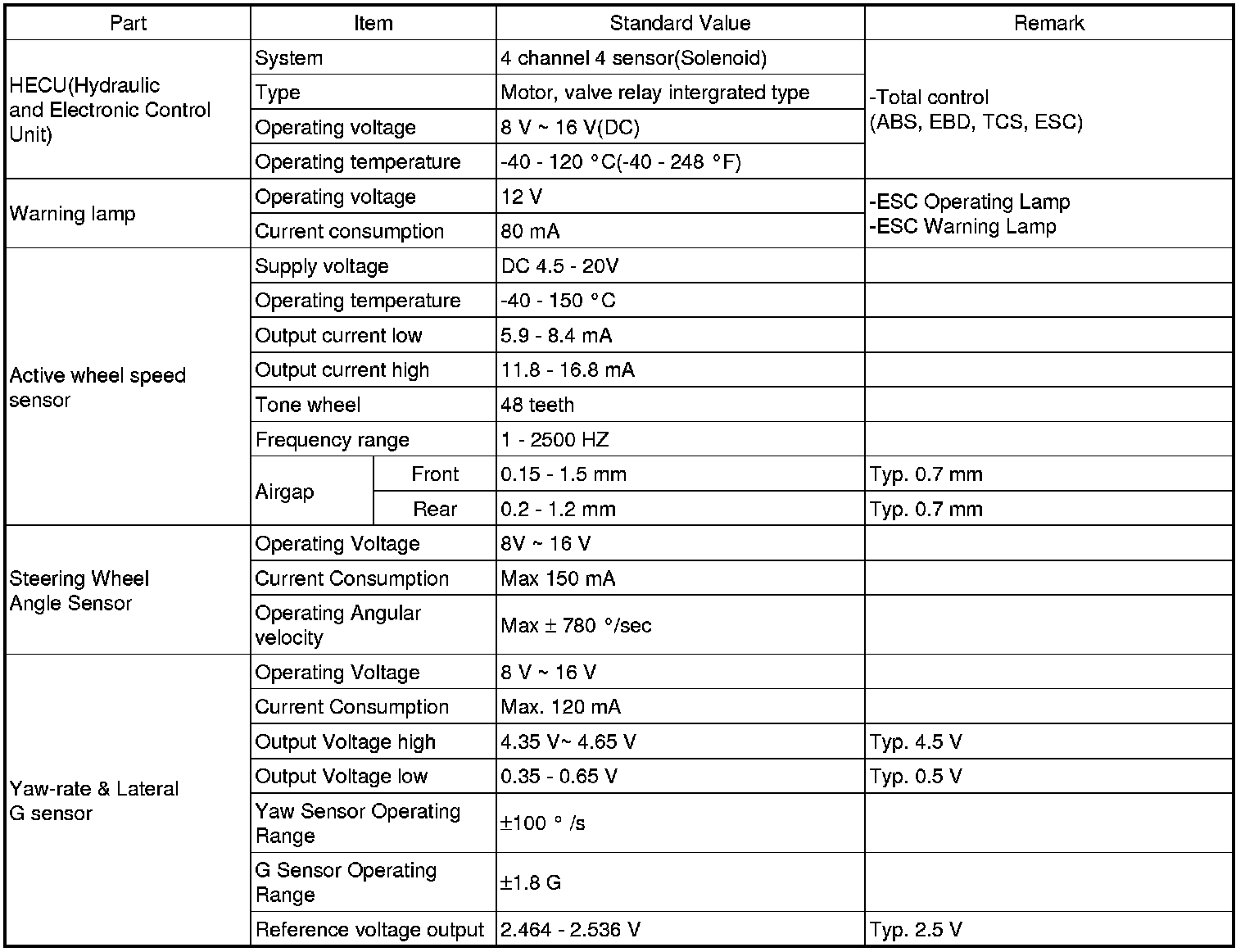

Specification(ESC)

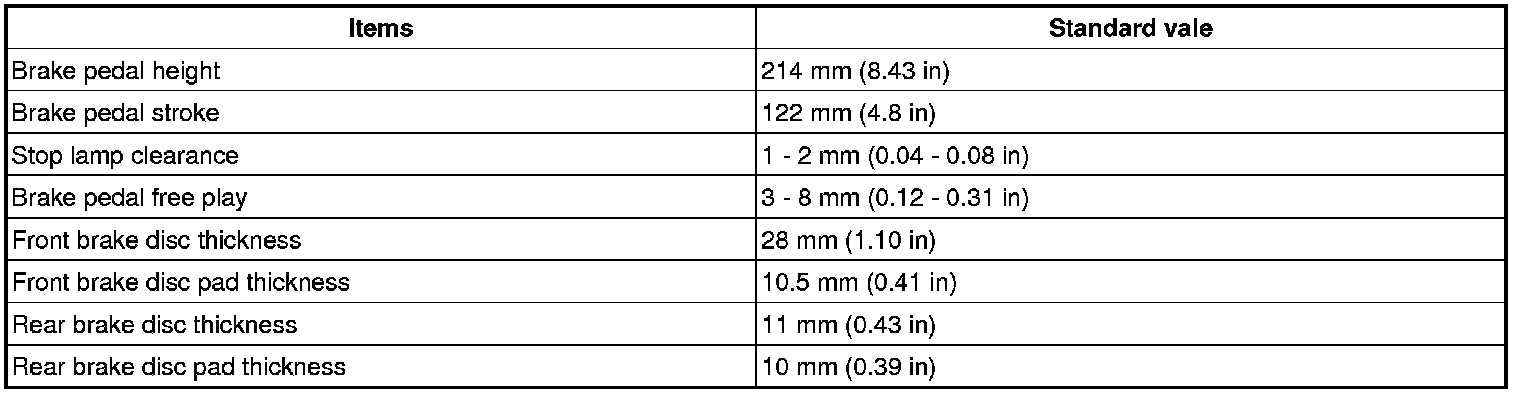

Service Standard

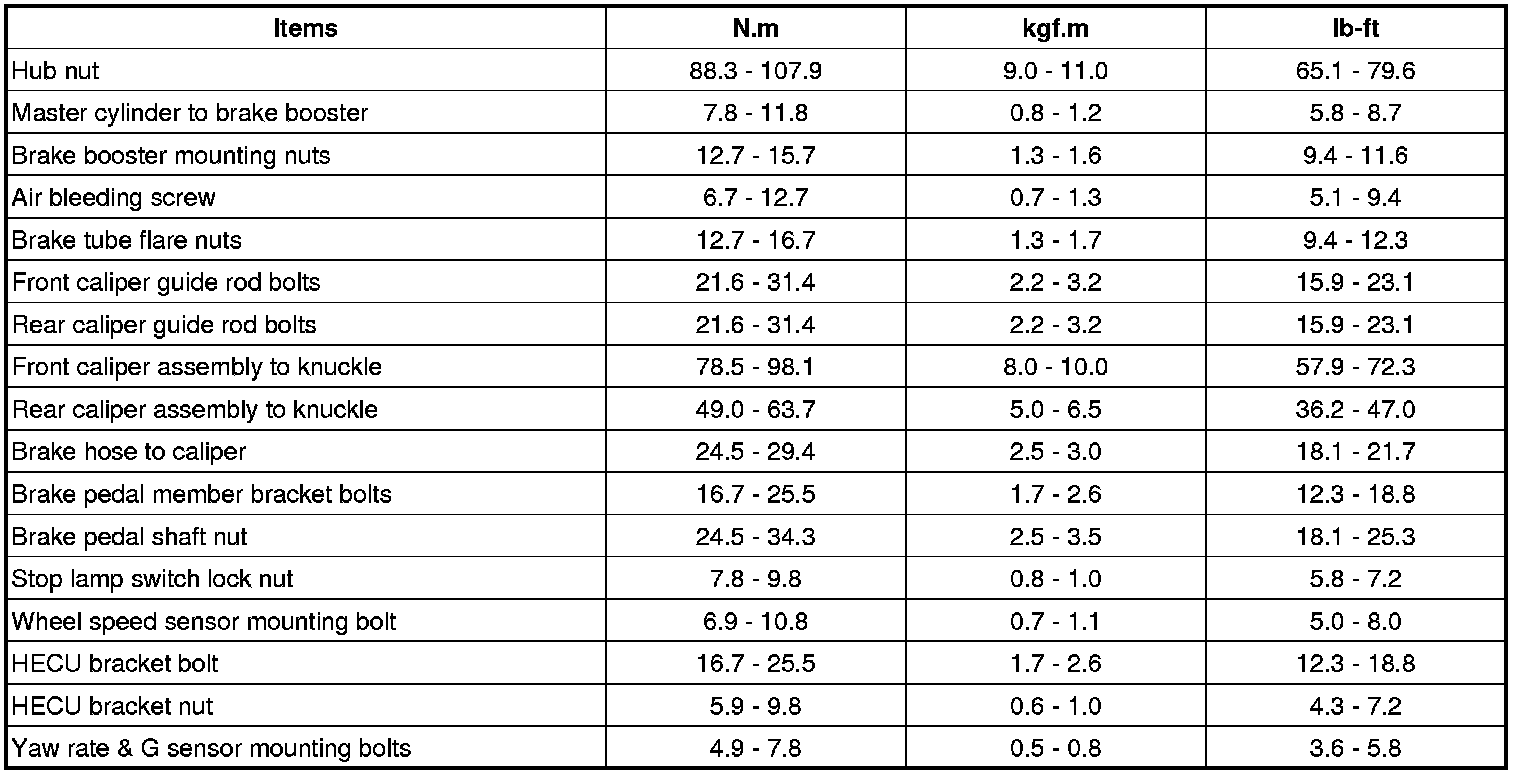

Tightening Torques
