Differential Assembly

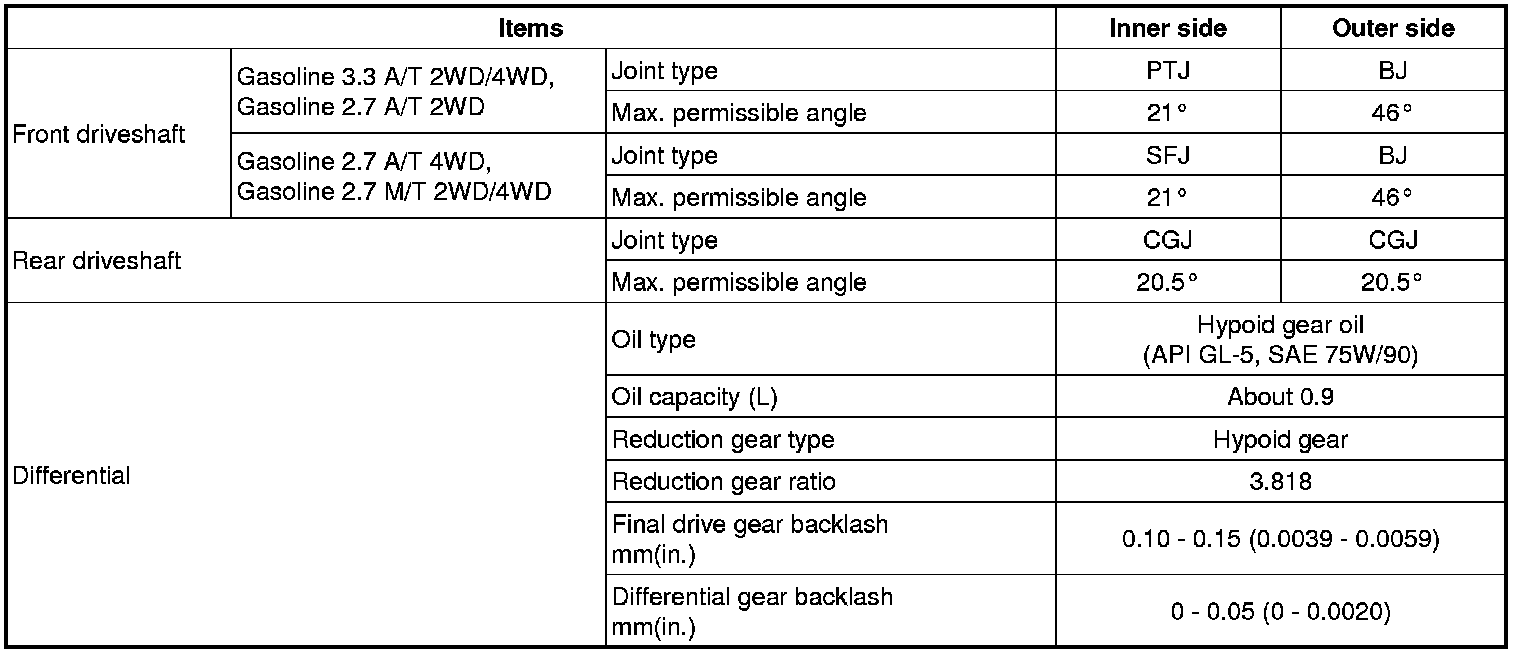

Specification





BJ : Birfield Joint
DOJ : Double Offset Joint
PTJ : Pillow journal Tri-pot Joint
SFJ : Shudderless Free-ring Joint

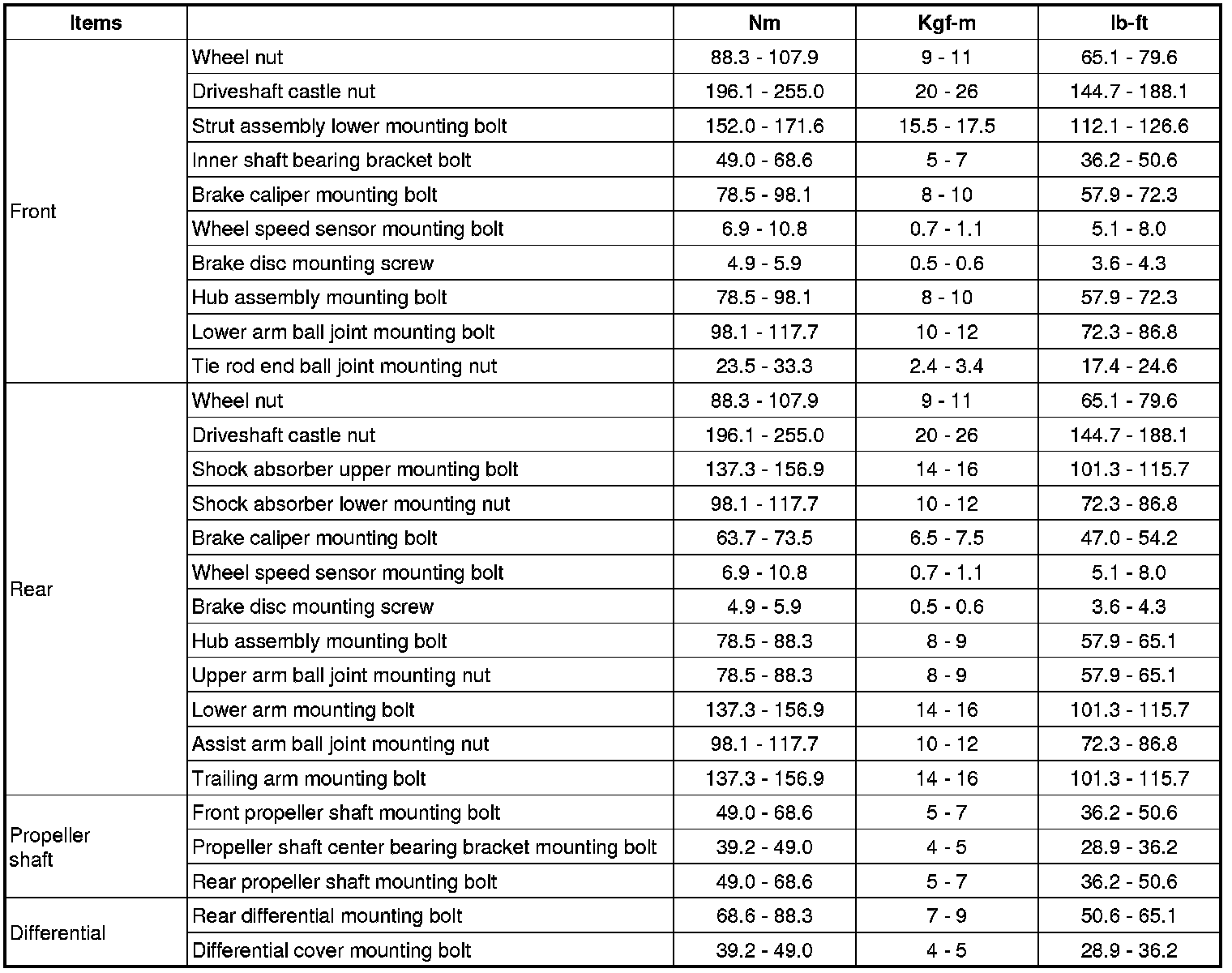

Tightening Torque






CAUTION:
Replace self-locking nuts with new ones after removal.

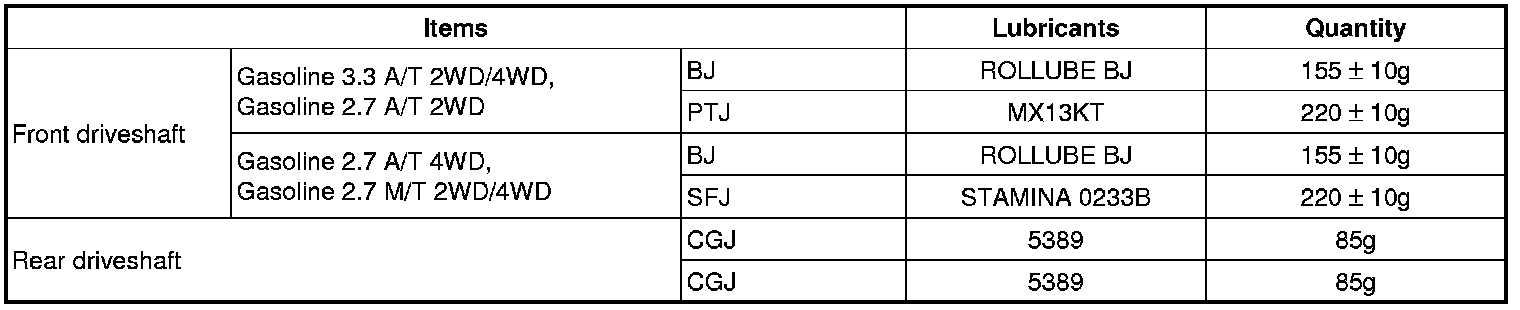

Lubricants
