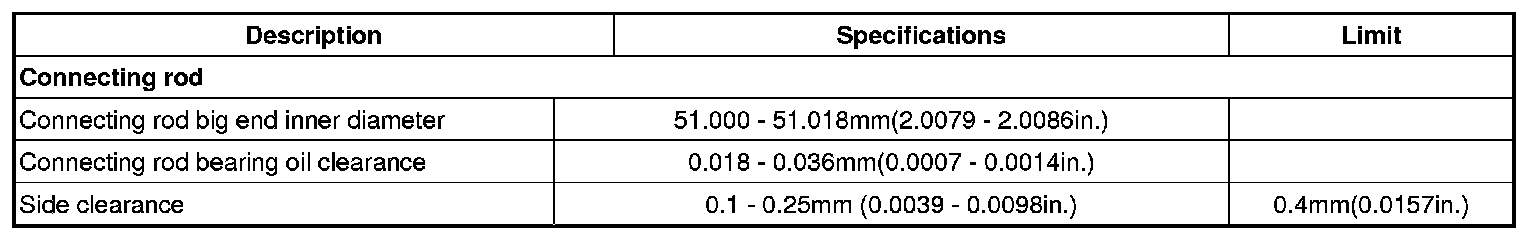

Connecting Rod
Connecting Rod
Specification
Standard
0.1 - 0.25 mm (0.0039 - 0.0098 in.)
Limit
0.4 mm (0.0157 in.)
