Drive Plate
Drive Plate

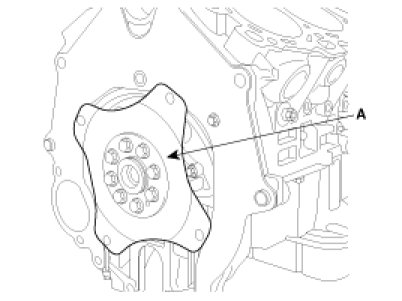

Install the drive plate(A)
Tightening torque
71.6 - 75.5 Nm (7.3 - 7.7 kgf.m, 52.8 - 55.7 lb-ft)
