Pinout Values and Diagnostic Parameters





Inspection

BCM Connectors

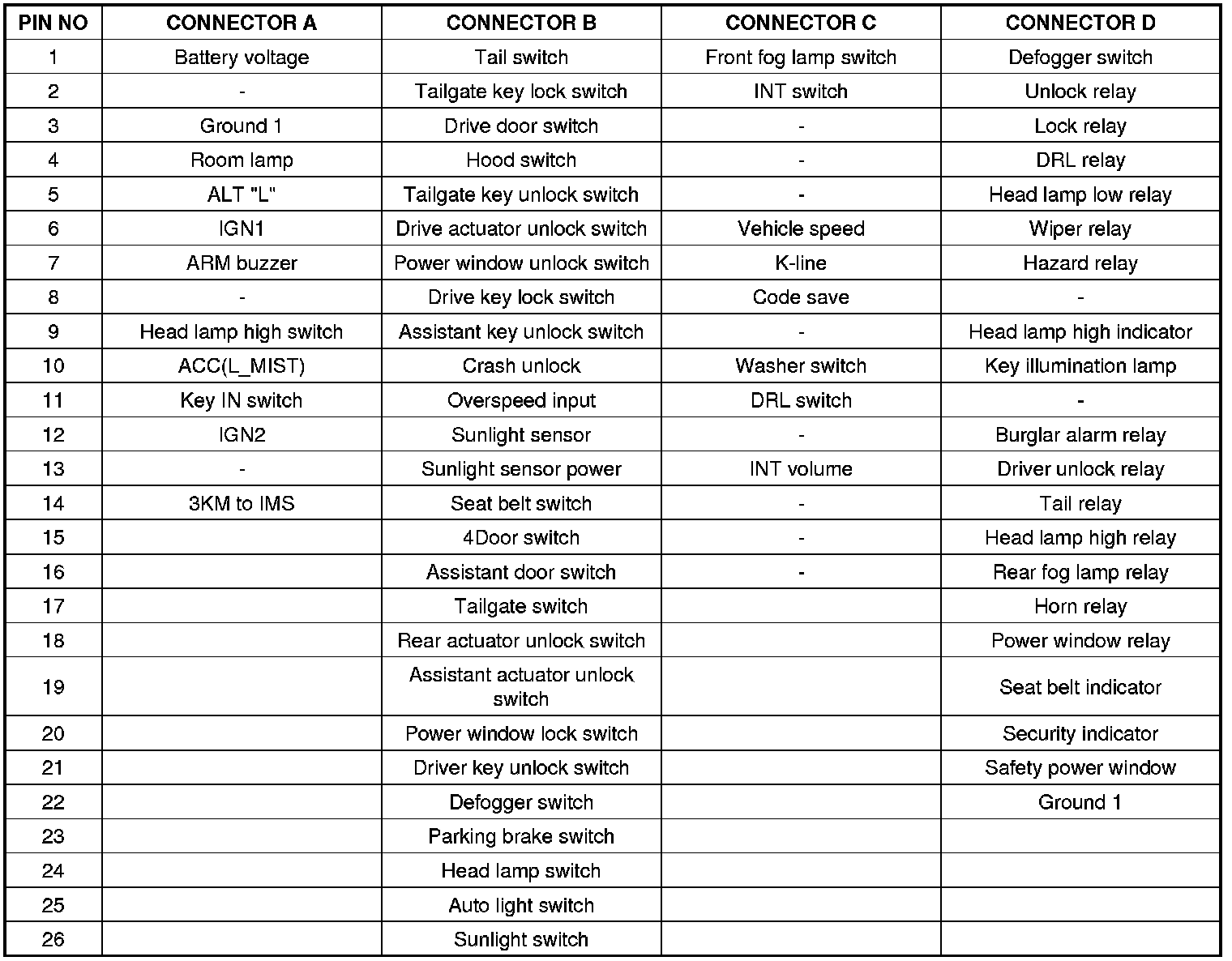

Bcm Input/output Specification

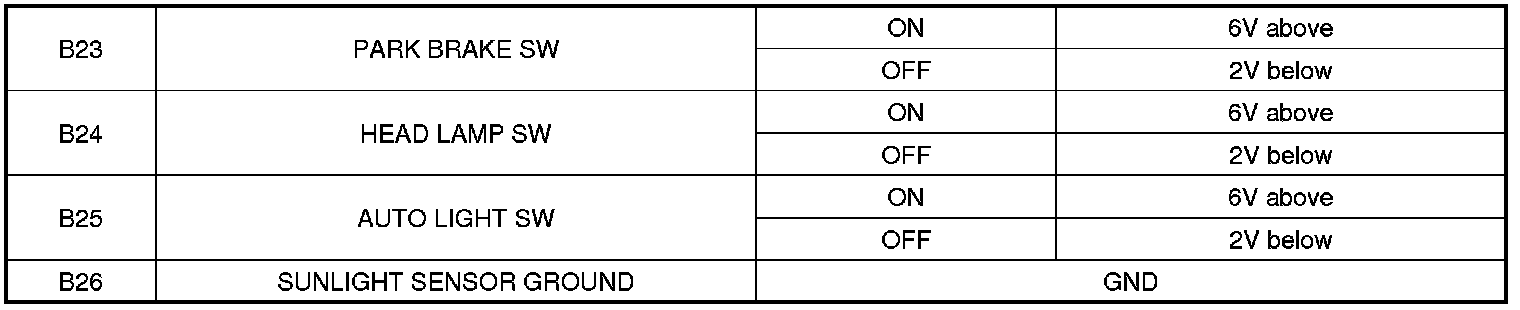

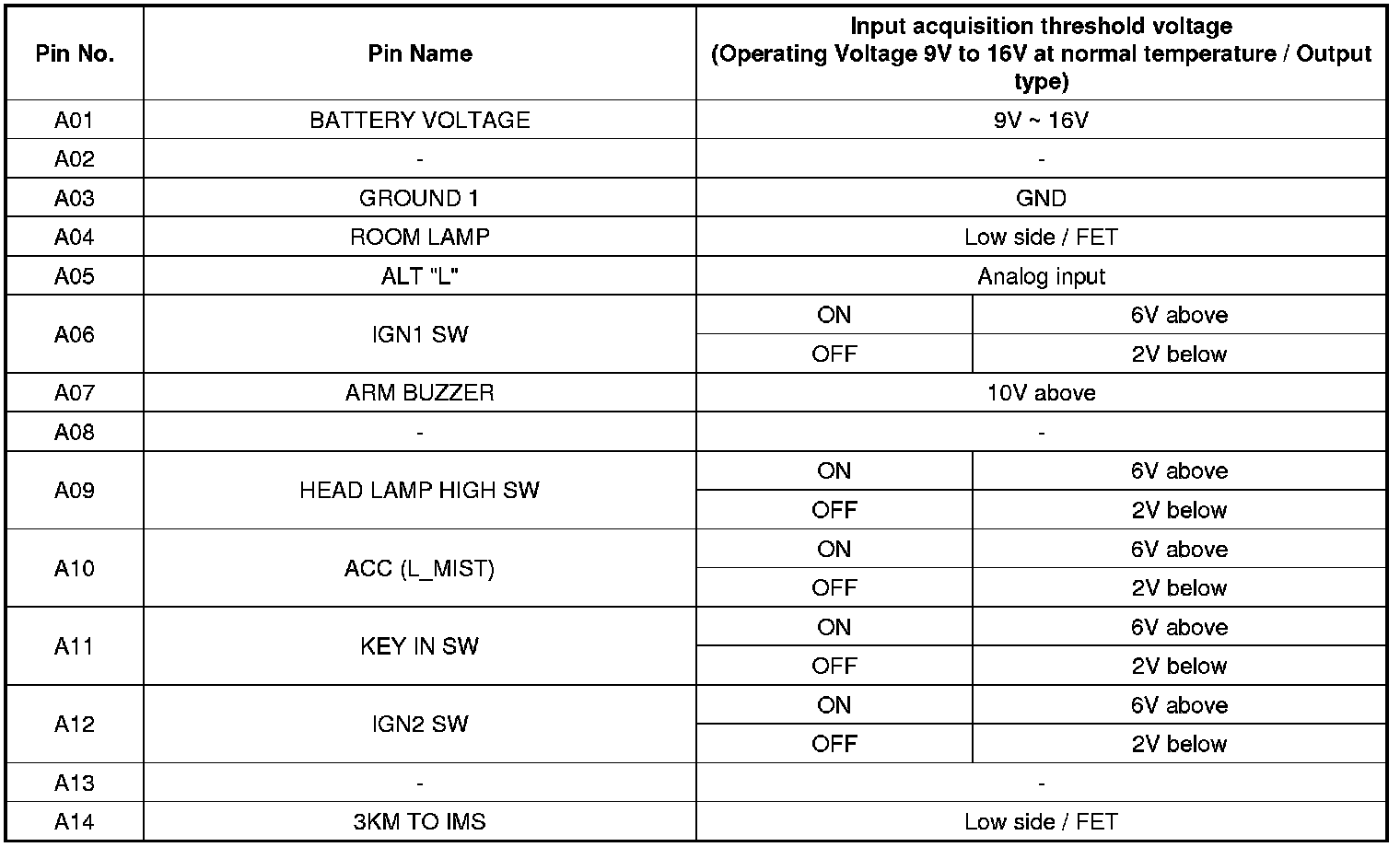

Connector A

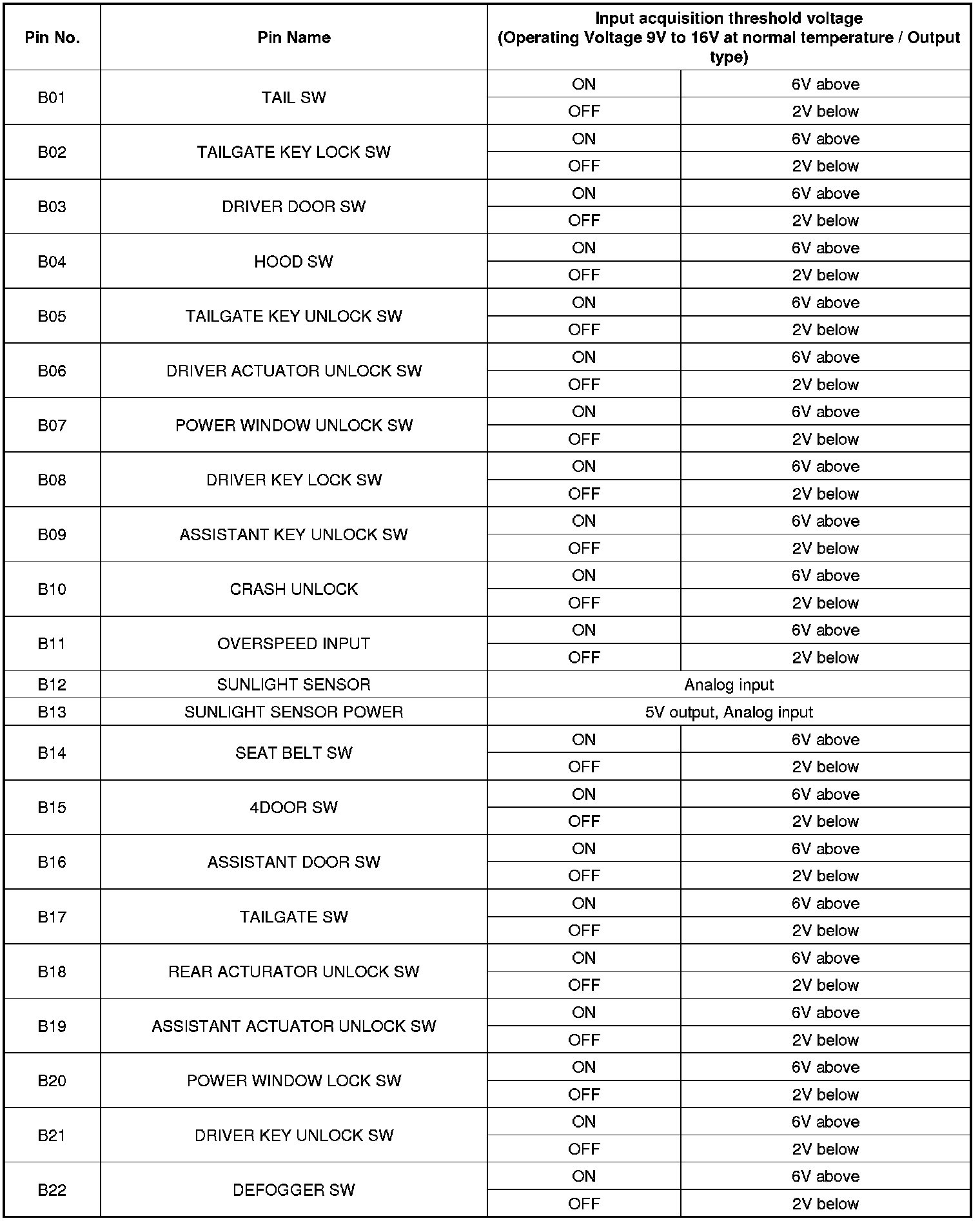

Connector B

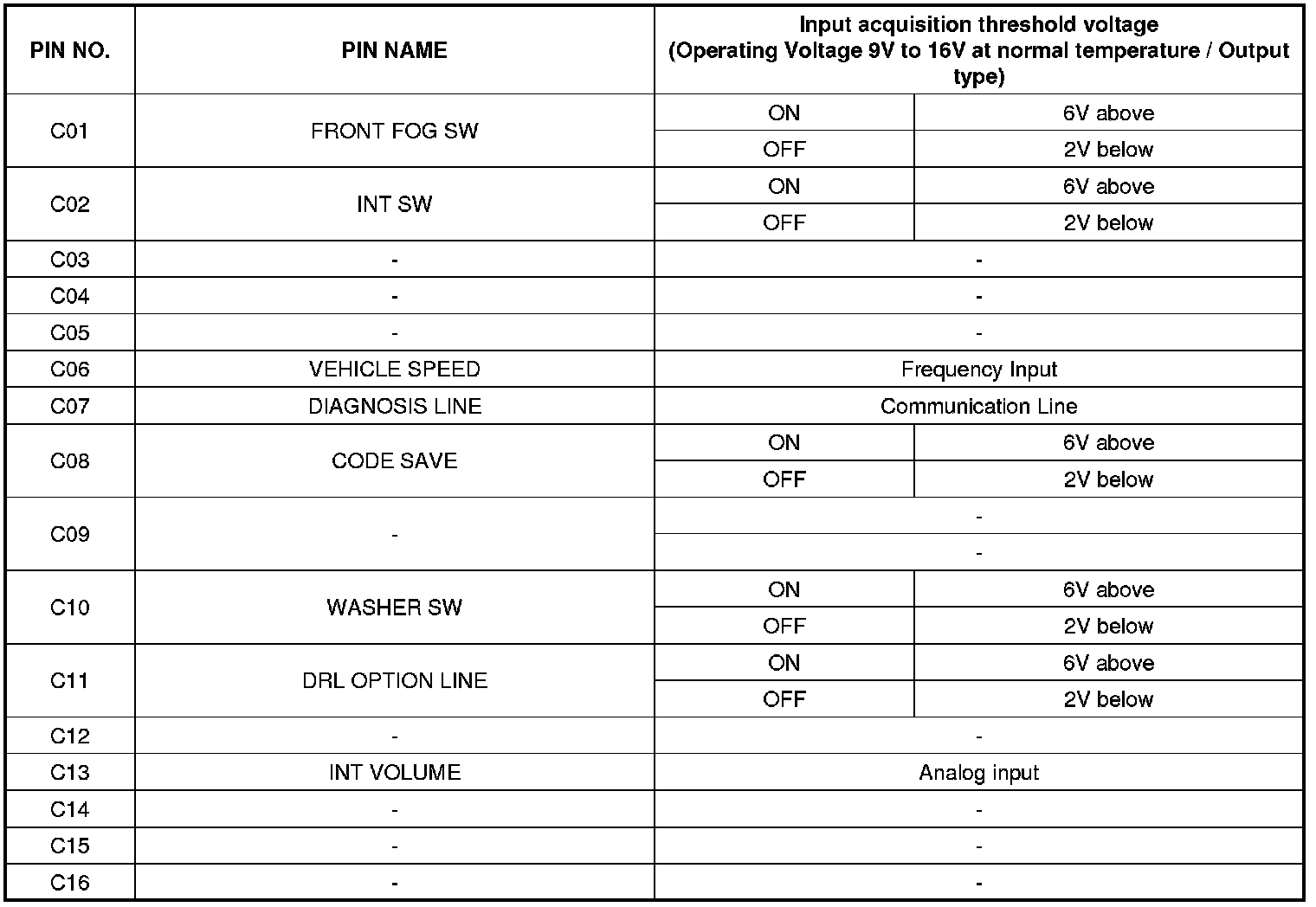

CONNECTOR C

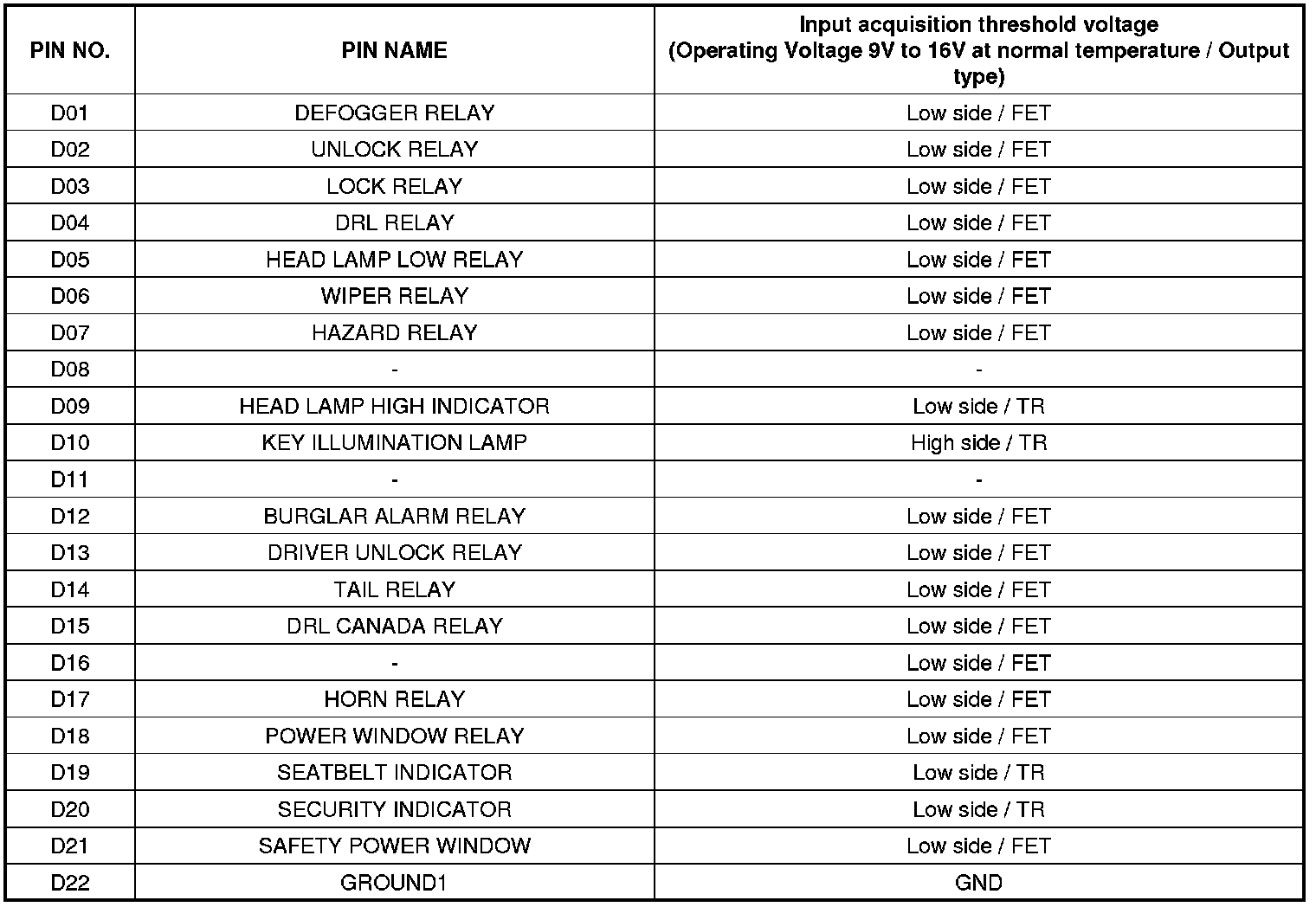

CONNECTOR D
