Ignition Switch: Replacement

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel (Refer to the CRASH PAD ).
Remove the ignition switch (A) after loosening the screw with IG ON and disconnecting the 6P connector.

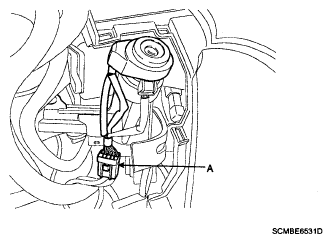

Fig 1: Identifying Ignition Switch
Courtesy of HYUNDAI MOTOR CO.
Remove the steering column cover (Refer to the GENERAL (STEERING SYSTEM) ).
Remove the door warning switch and key illumination lamp (A) after disconnecting the 6P connector.

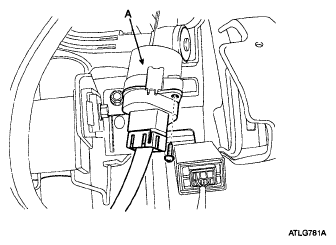

Fig 2: Identifying Door Warning Switch And Key Illumination Lamp
Courtesy of HYUNDAI MOTOR CO.
If it is necessary to remove the key lock cylinder (A), Remove the key lock cylinder (A) after pushing lock pin (B) with key ACC.

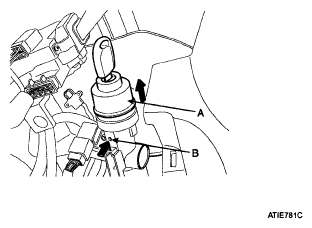

Fig 3: Identifying Key Lock Cylinder And Lock Pin
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal procedure.
