Accelerator Position Sensor (APS): Specification

VOLTAGE SPECIFICATION

Accelerator Position	Output Voltage (V)
	APS1	APS2
C.T	0.7 ~ 0.8	0.29 ~ 0.46
W.O.T	3.85 ~ 4.35	1.93 ~ 2.18

RESISTANCE SPECIFICATION

Item	Sensor Resistance (kΩ)
APS 1	0.7 ~ 1.3 [20°C (68°F)]
APS 2	1.4 ~ 2.6 [20°C (68°F)]

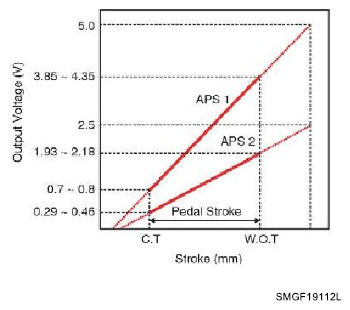

Fig 1: Voltage Output Graph

Courtesy of HYUNDAI MOTOR CO.
