Engine Control System (Fuel System (2.7))
>>
CVVT Oil Control Valve (OCV)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

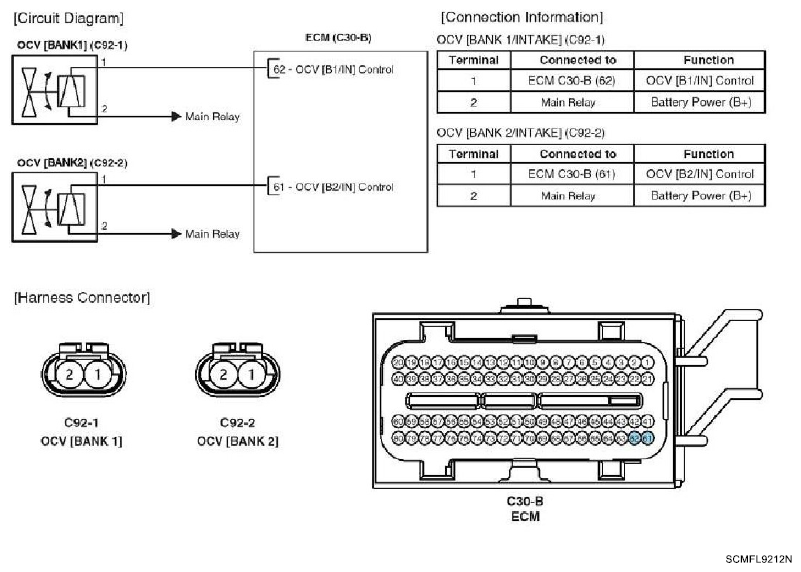

Fig 1: Oil Control Valve - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
