LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Hyundai
>>
2009
>>
Santa Fe GLS, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Fuel System (2.7))
>>
Engine Control Module (ECM)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

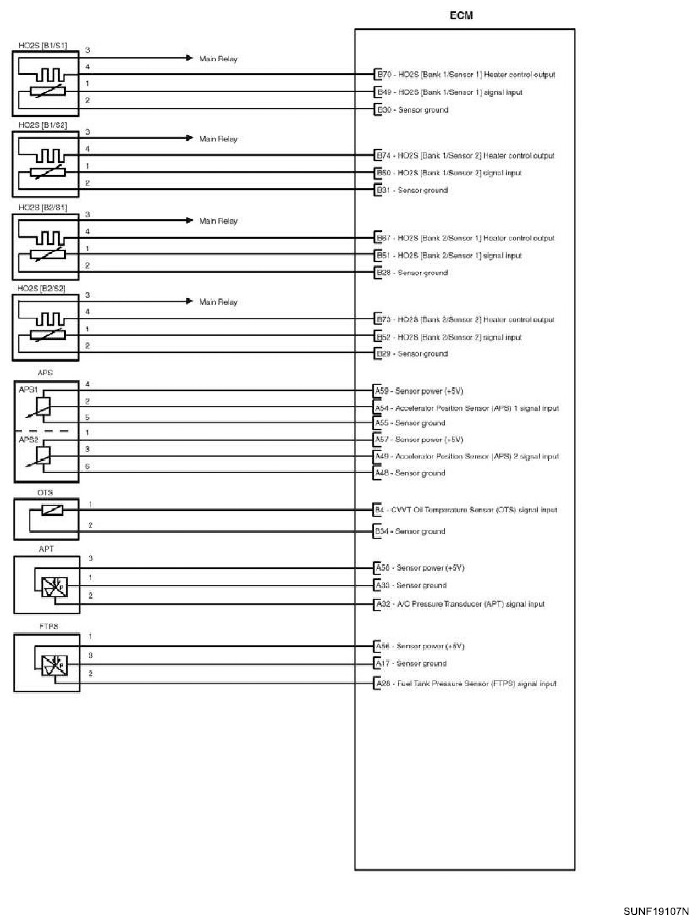

Fig 1: Fuel System - Circuit Diagram (1 Of 5)
Courtesy of HYUNDAI MOTOR CO.

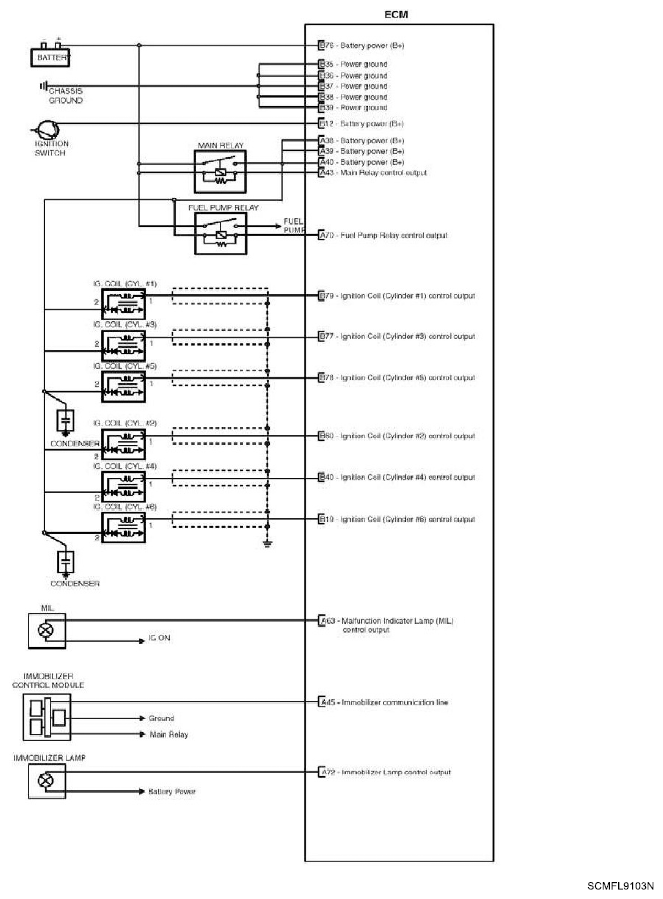

Fig 2: Fuel System - Circuit Diagram (2 Of 5)
Courtesy of HYUNDAI MOTOR CO.

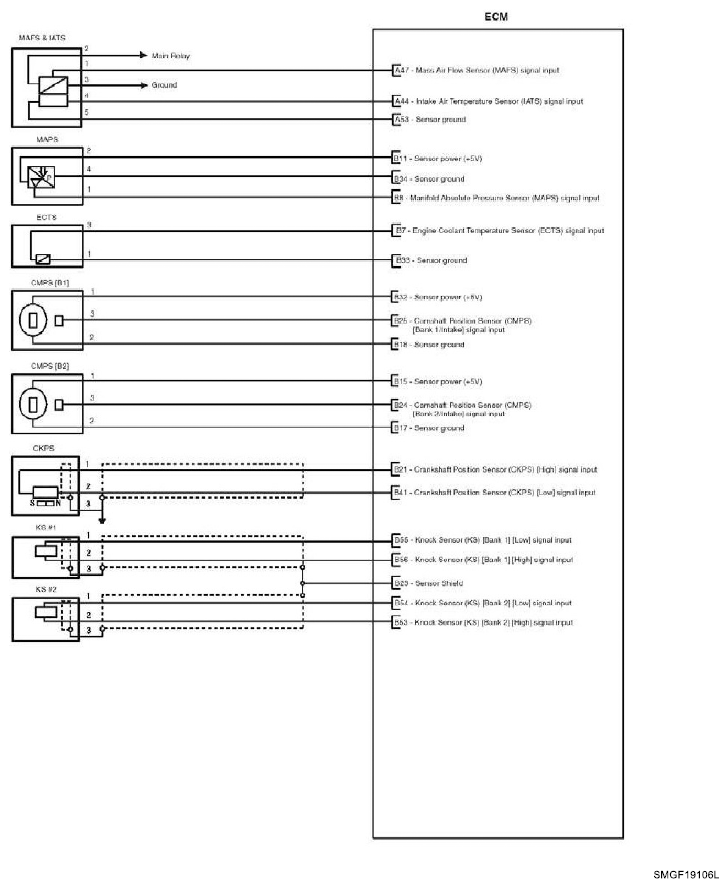

Fig 3: Fuel System - Circuit Diagram (3 Of 5)
Courtesy of HYUNDAI MOTOR CO.

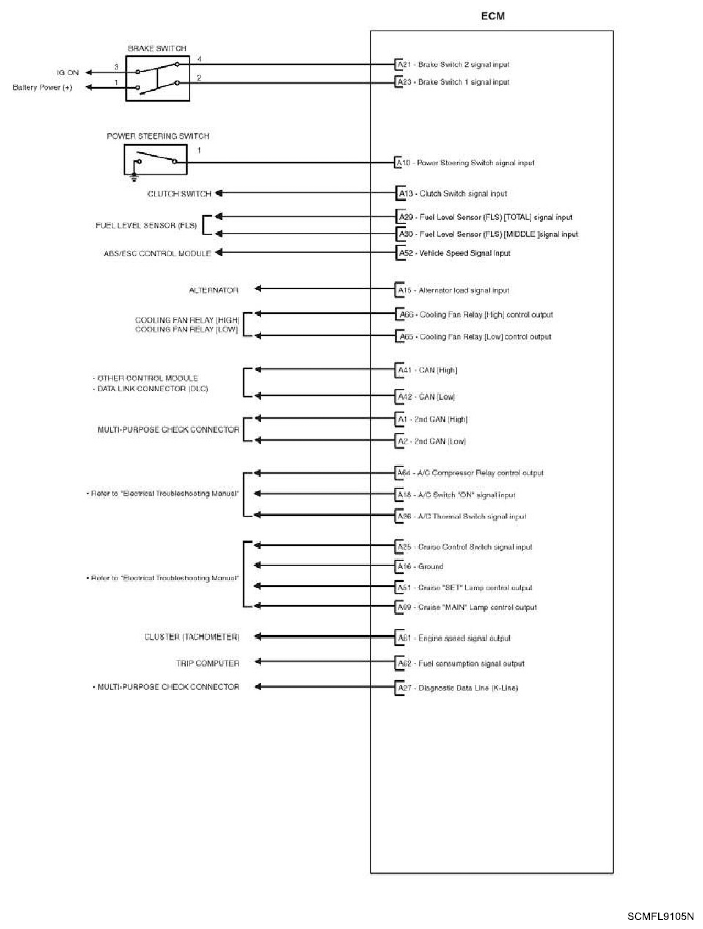

Fig 4: Fuel System - Circuit Diagram (4 Of 5)
Courtesy of HYUNDAI MOTOR CO.

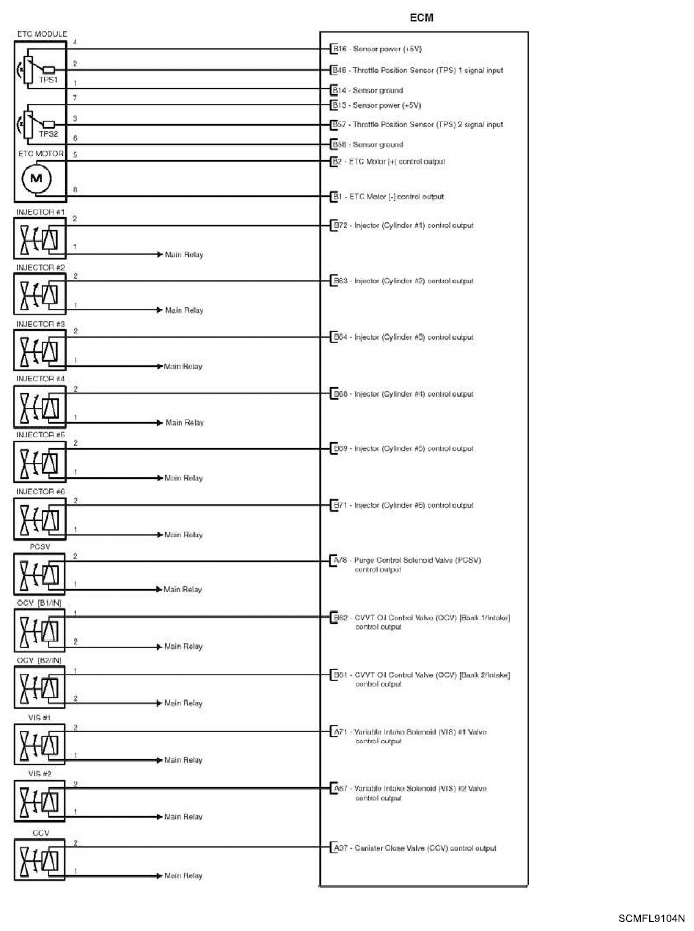

Fig 5: Fuel System - Circuit Diagram (5 Of 5)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
