Intake Air Temperature Sensor (IATS): Specification

RESISTANCE SPECIFICATION

Temperature		Resistance (kΩ)
°C	°F
-40	-40	100.87
-20	-4	28.58
0	32	9.40
10	50	5.66
20	68	3.51
40	104	1.47
60	140	0.67
80	176	0.33

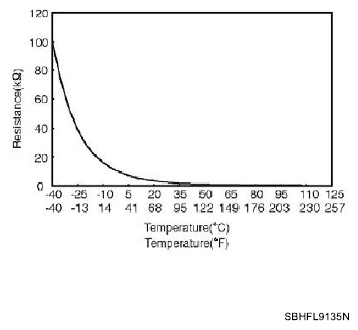

Fig 1: Temperature Graph

Courtesy of HYUNDAI MOTOR CO.
