Circuit Diagram

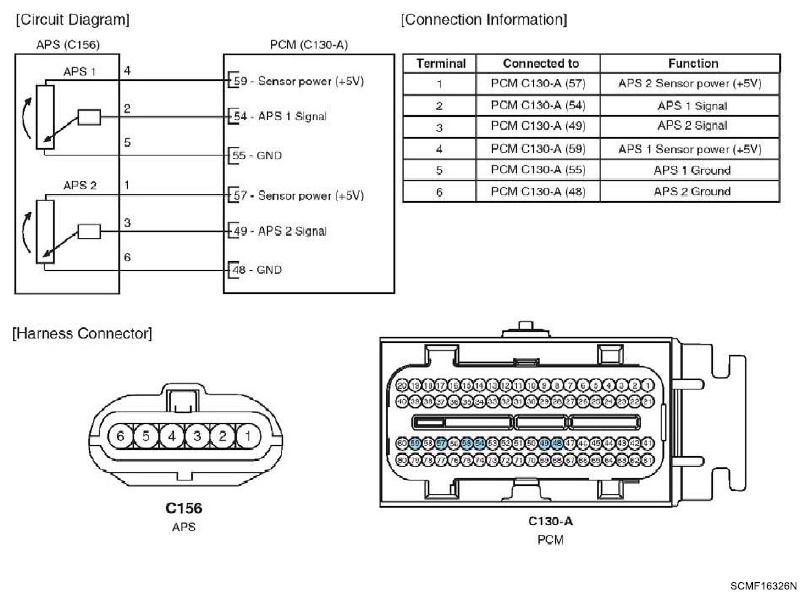

Fig 1: Accelerator Position Sensor Circuit Diagram With Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
