Circuit Diagram

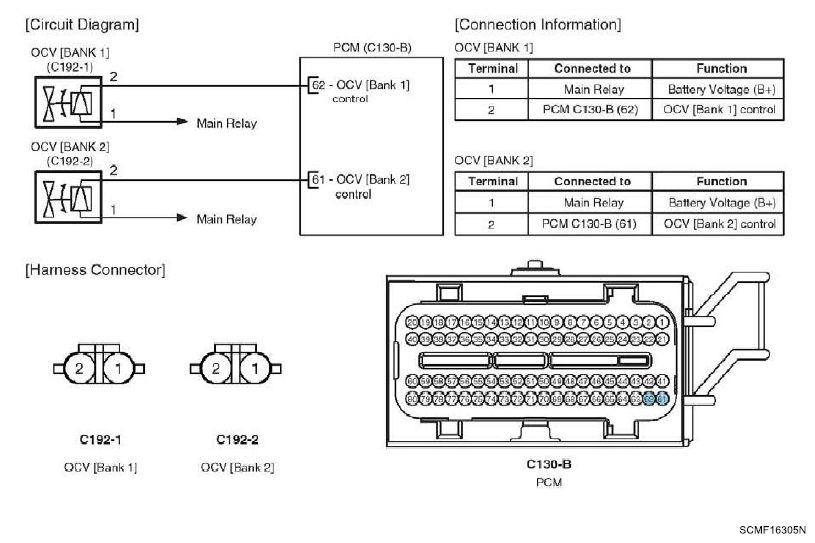

Fig 1: CVVT Oil Control Valve Circuit Diagram With Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
