Function And Operation Principle

The CVVT Oil Temperature Sensor (OTS) is a negative coefficient thermistor used by the PCM to measure engine oil temperature for the purpose of adjusting CVVT calculations.

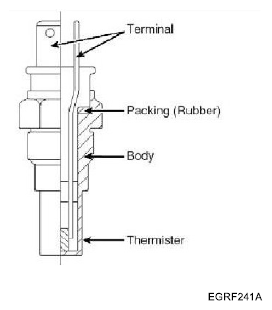

Fig 1: Sectional View Of CVVT Oil Temperature Sensor
G06217954Courtesy of HYUNDAI MOTOR CO.
