Engine Control System (Fuel System (3.3L))
>>
Electronic Throttle System (ETS)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

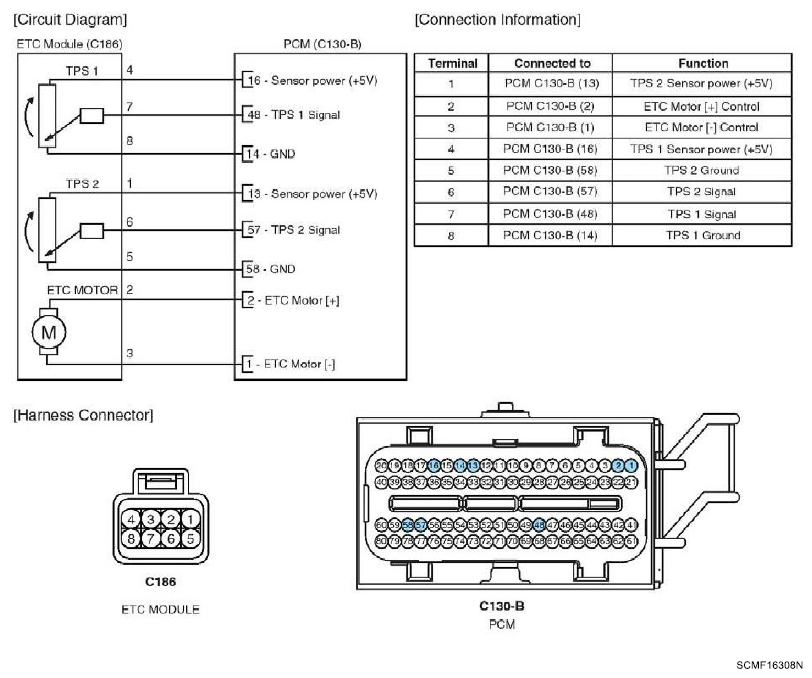

Fig 1: ETC Module Circuit Diagram With Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
