Component Location

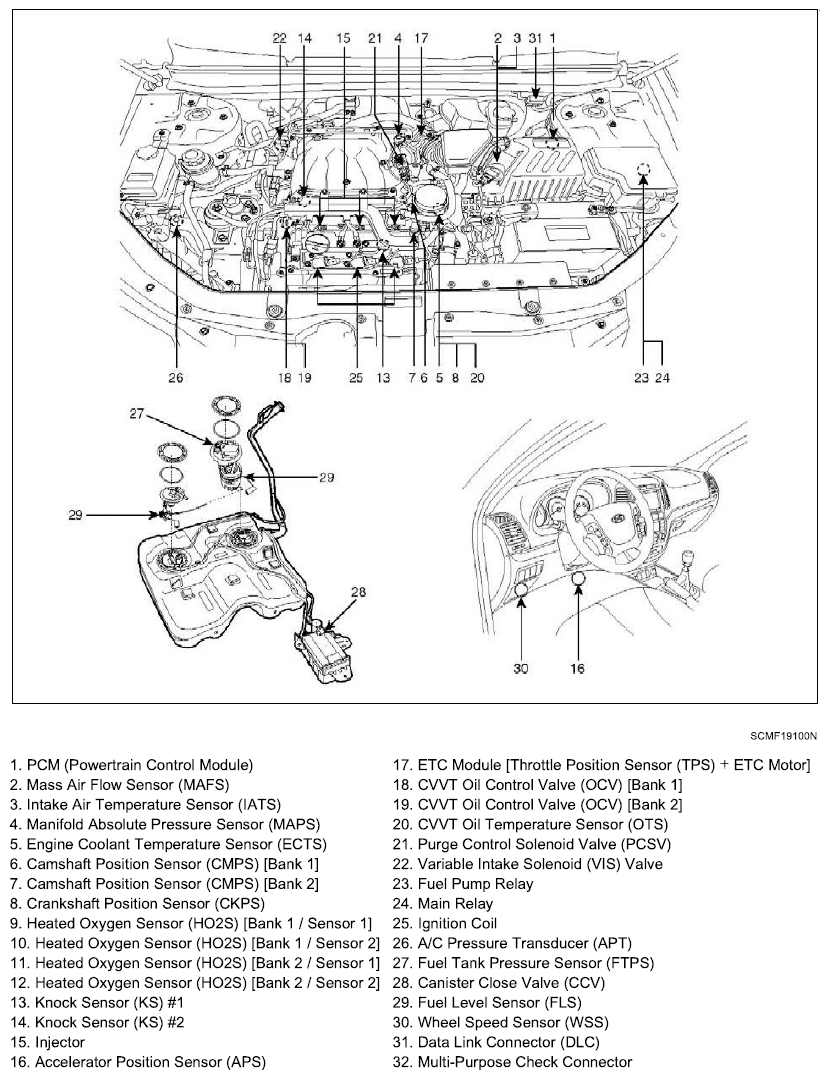

Fig 1: Identifying Engine Control System Components Location

Courtesy of HYUNDAI MOTOR CO.

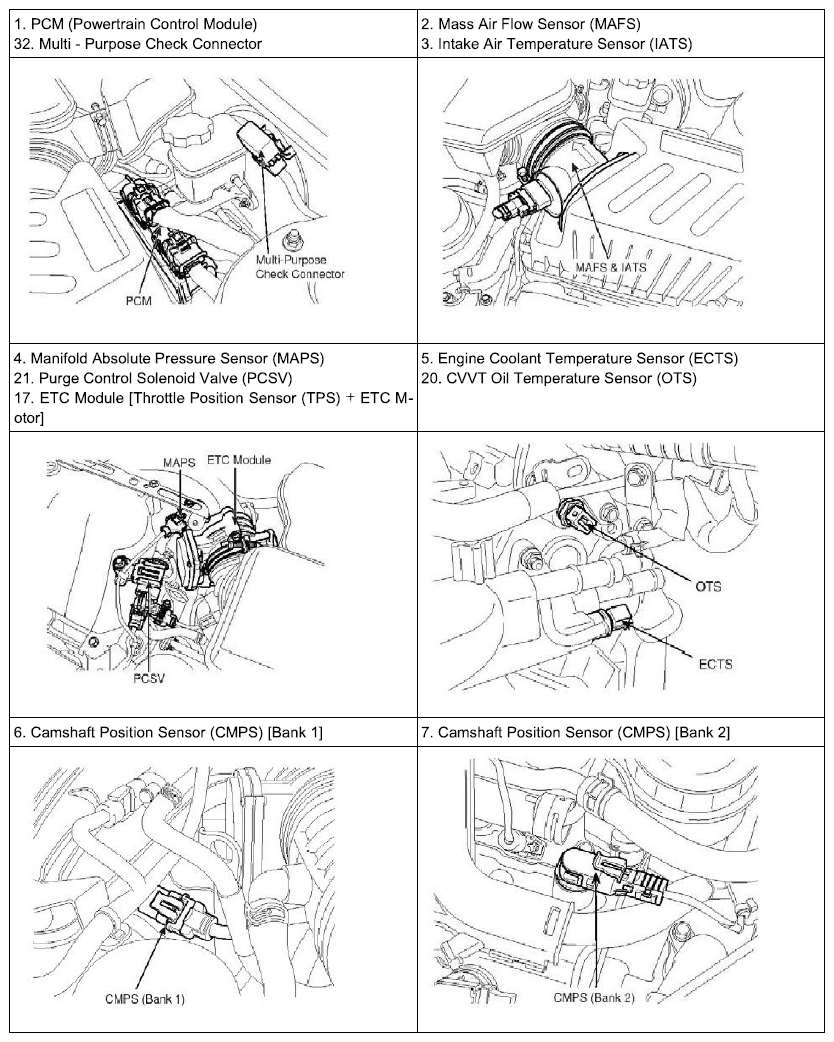

Fig 2: Identifying Engine Control System Connectors (1 Of 4)

Courtesy of HYUNDAI MOTOR CO.

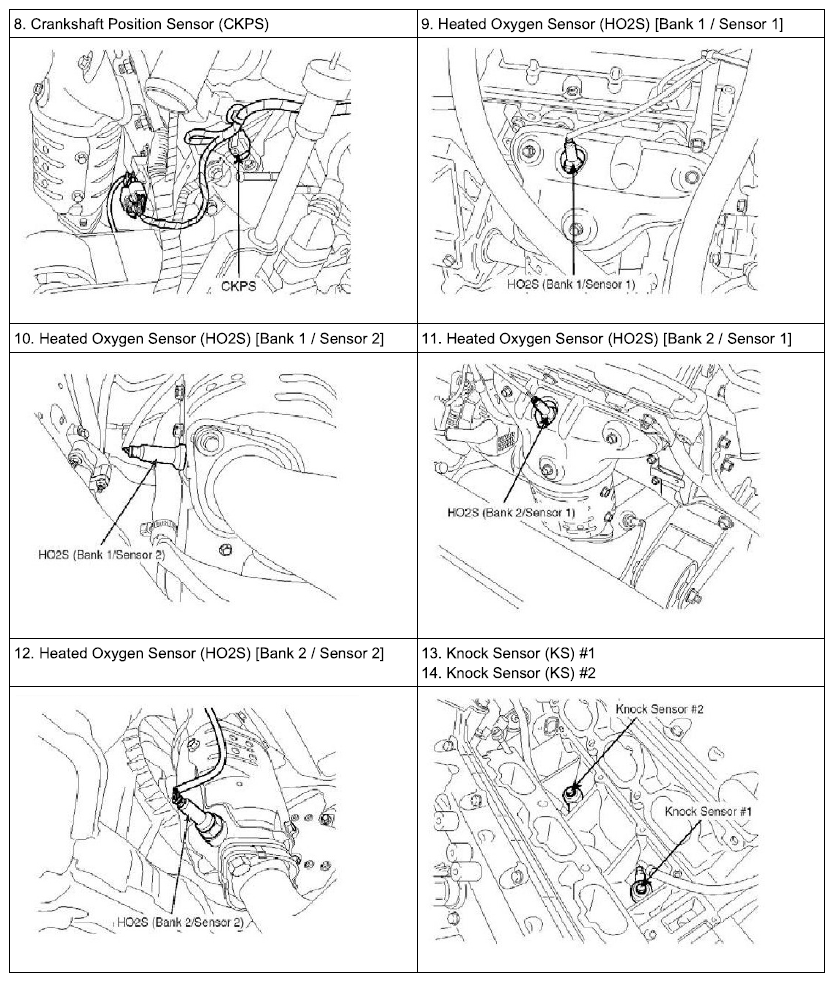

Fig 3: Identifying Engine Control System Connectors (2 Of 4)

Courtesy of HYUNDAI MOTOR CO.

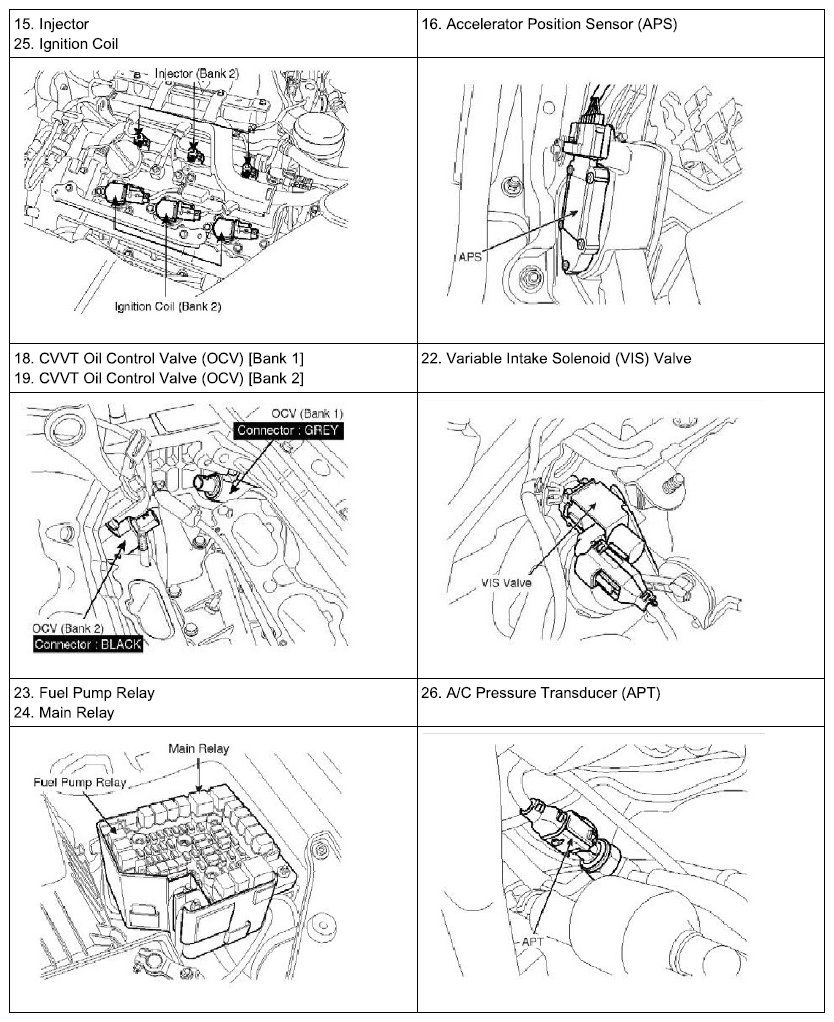

Fig 4: Identifying Engine Control System Connectors (3 Of 4)

Courtesy of HYUNDAI MOTOR CO.

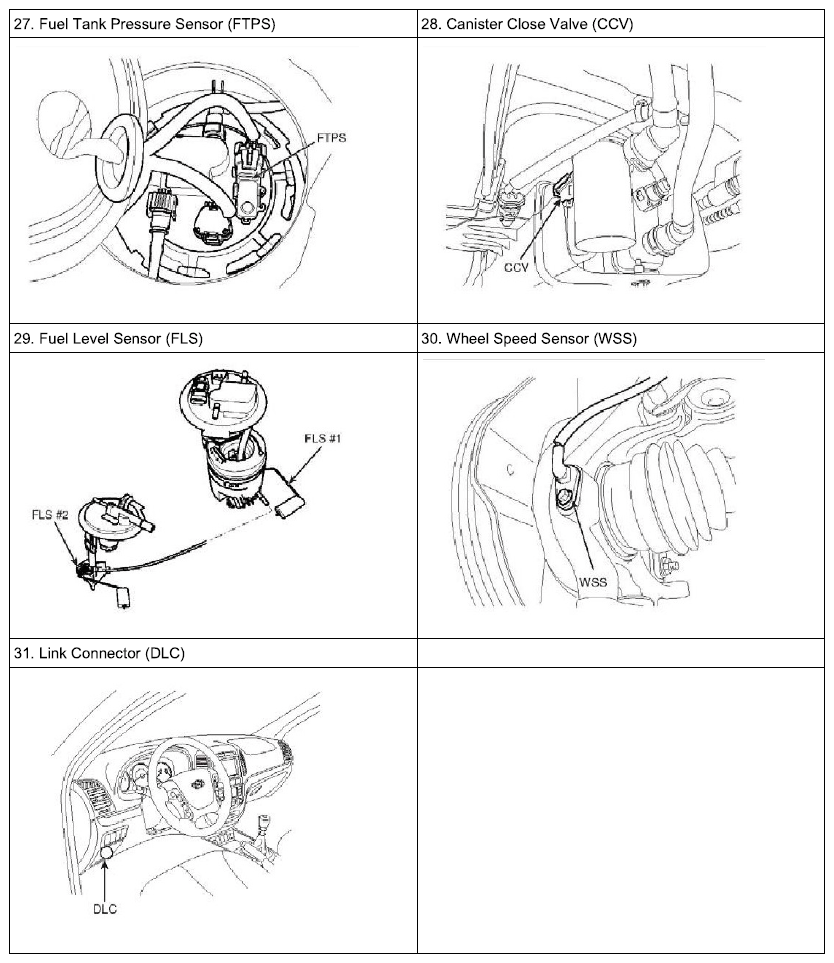

Fig 5: Identifying Engine Control System Connectors (4 Of 4)

Courtesy of HYUNDAI MOTOR CO.
