Hyundai
>>
2009
>>
Santa Fe SE, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Fuel System (3.3L))
>>
Heated Oxygen Sensor (HO2S)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

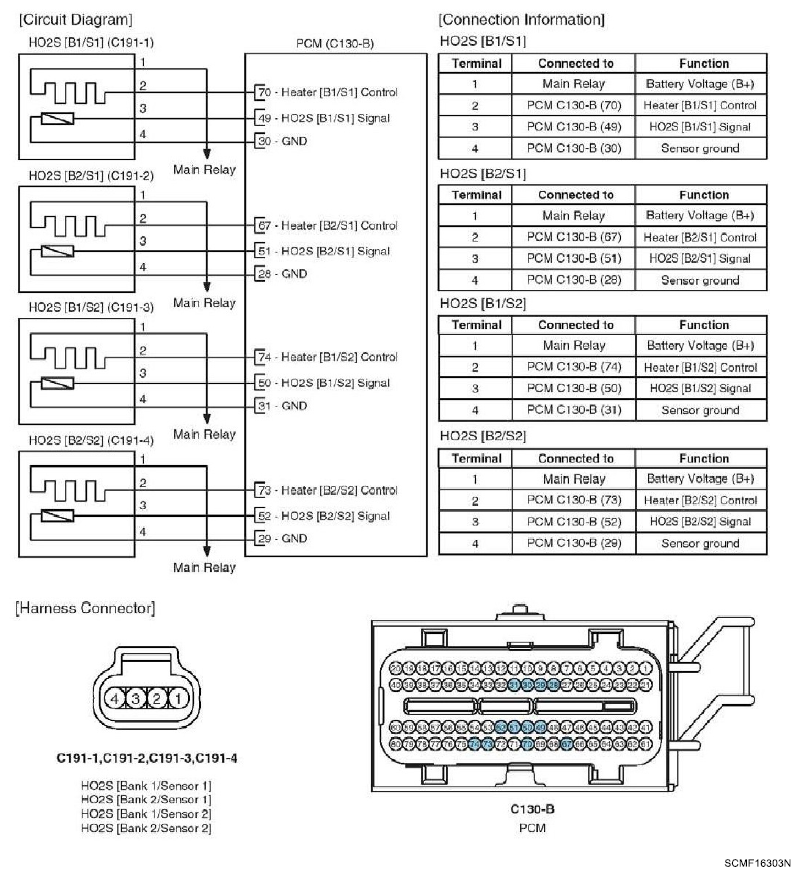

Fig 1: Heated Oxygen Sensor - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
