Santa Fe SE, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Fuel System (3.3L))
>>
Manifold Absolute Pressure Sensor (MAPS)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

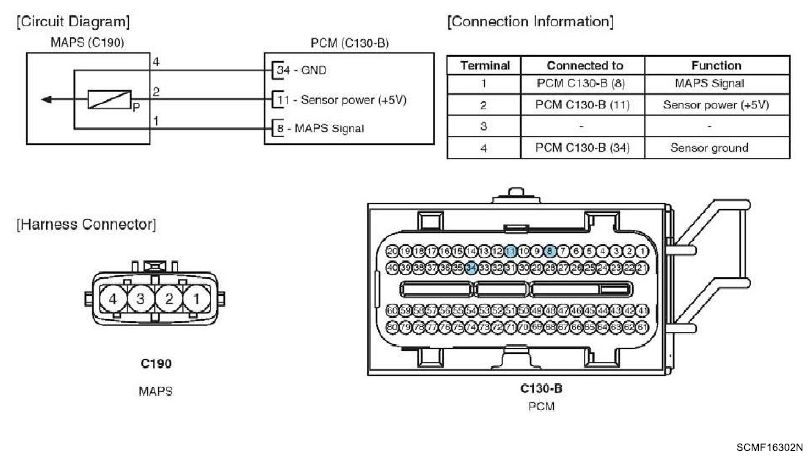

Fig 1: Manifold Absolute Pressure Sensor Circuit Diagram With Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
